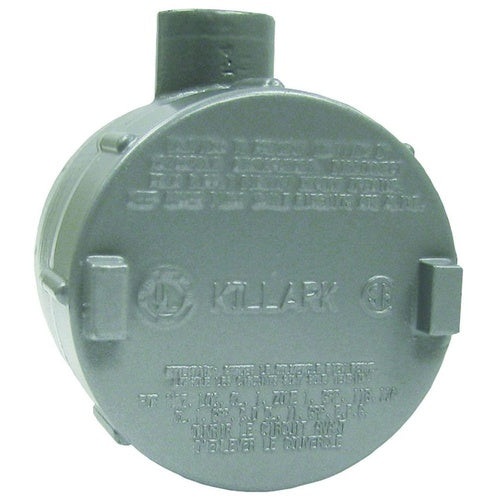

Killark GECET-3M Conduit Body

Overview

Killark GECET-3M Conduit Body

Product Specifications

• UPC: 78393621080
• Capacity: 19 CU INCH
• Shape: ROUND
• Cover Type: EXTERNALLY THREADED
• Cover Opening Diameter: 2-11/16 INCH
• Enclosure: CLASS I GROUP D, CLASS I ZONE 1 GROUP IIA, CLASS II, CLASS III
• Material: ELECTRO ZINC CHROMATE SEALED ELECTROSTATICALLY APPLIED POWDER COATED DURALOY IRON ALLOY BODY, ELECTROSTATICALLY APPLIED POWDER COATED COPPER FREE ALUMINUM COVER
• Approval: UL 886, CSA C22.2
• Additional Information: WITH GROUND SCREW
• Catalog Number: GECET-3M
• Brand Name: HUBBELL[R]
• Model: GEC
• Style: E
• Hub Size: 1 INCH
• Hub Type: EXTERNAL
• Number Of Hubs: 1
• Hub Location: DEAD END
• Catalog Description: 1" GEC OUTLET BODY, E-TYPE, IRON
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Electro Zinc Chromate Sealed Electrostatically Applied Powder Coated Duraloy Iron Alloy Body, Electrostatically Applied Powder Coated Copper Free Aluminum Cover Material; Round Shape; 1 Inch Hub Size; 1 Hub(S); UL 886, CSA C22.2 Approval; Class I Group D, Class I Zone 1 Group Iia, Class II, Class III Enclosure; Externally Threaded Cover Type; 19 Cu Inch Capacity; E Style; Dead End Hub Location; External Hub Type; 2-11/16 Inch Cover Opening Diameter; HUBBELL[R] Brand; With Ground Screw; GEC Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121314
• UPC 12 Digit: 783936210803
• SKU Name: klrk gecet3m

Resources

• Manufacturer Spec Sheet
