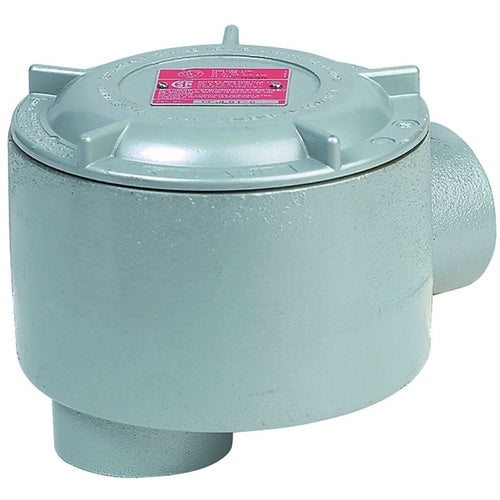

Killark GECLBT-3M Conduit Body

Overview

Killark GECLBT-3M Conduit Body

Product Specifications

• UPC: 78393621083
• Shape: Round
• Cover Type: Externally Threaded
• Cover Opening Diameter: 2-11/16 Inch
• Enclosure: Class I Group D, Class I Zone 1 Group IIA, Class II, Class III
• Material: Electro Zinc Chromate Sealed Electrostatically Applied Powder Coated Duraloy Iron Alloy Body, Electrostatically Applied Powder Coated Copper Free Aluminum Cover
• Approval: UL 886, CSA C22.2
• Additional Information: Includes Grounding Screw
• Catalog Number: GECLBT-3M
• Model: GEC
• Style: LB
• Hub Size: 1 Inch
• Hub Type: External
• Number Of Hubs: 2
• Hub Location: (1) Side, (1) Down
• Capacity: 19 Cu Inch
• Catalog Description: 1" GEC OUTLET BODY LB TYPE, IRON
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Electro Zinc Chromate Sealed Electrostatically Applied Powder Coated Duraloy Iron Alloy Body, Electrostatically Applied Powder Coated Copper Free Aluminum Cover Material; Round Shape; 1 Inch Hub Size; 2 Hub(S); UL 886, CSA C22.2 Approval; Class I Group D, Class I Zone 1 Group Iia, Class II, Class III Enclosure; Externally Threaded Cover Type; 19 Cu Inch Capacity; lb Style; (1) Side, (1) Down Hub Location; External Hub Type; 2-11/16 Inch Cover Opening Diameter; Includes Grounding Screw; GEC Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121314
• UPC 12 Digit: 783936210834
• SKU Name: klrk geclbt3m

Resources

• Manufacturer Spec Sheet
• Technical Drawing
