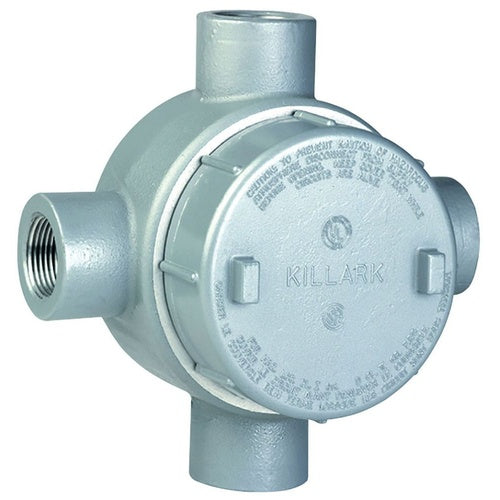

Killark GECXT-2 3/4" Explosion-Proof Conduit Body

Overview

Killark GECXT-2 3/4" Explosion-Proof Conduit Body

Product Specifications

• UPC: 78393621015
• Shape: Round
• Cover Type: Internally Threaded
• Cover Opening Diameter: 2-11/16 Inch
• Enclosure: Class I Division 1 and 2 Group B C D, Class I, Zone 1, Group IIB, IIA, Class II Division 1 and 2 Group E F G, Class III
• Material: Electrostatically Applied Powder Epoxy Painted Copper-Free Aluminum
• Approval: UL 886/1203, CSA C22.2
• Additional Information: Overall Dimension 6.25 Inch Length x 6 Inch Width x 4.25 Inch Height; Includes Green Grounding Screw; Application Wet Location; Applicable Standard Federal Specification WC-586D, Mil F28675
• Catalog Number: GECXT-2
• Model: GEC
• Style: X
• Hub Size: 3/4 Inch
• Hub Type: External
• Number Of Hubs: 4
• Hub Location: (4) Side
• Capacity: 19 Cubic Inch
• Catalog Description: " GEC OUTLET BODY X TYPE
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Epoxy Painted Copper-Free Aluminum Material; Round Shape; 3/4 Inch Hub Size; 4 Hub(S); UL 886/1203, CSA C22.2 Approval; Class I Division 1 and 2 Group B C D, Class I, Zone 1, Group Iib, Iia, Class II Division 1 and 2 Group E F G, Class III Enclosure; Internally Threaded Cover Type; 19 Cubic Inch Capacity; X Style; (4) Side Hub Location; External Hub Type; 2-11/16 Inch Cover Opening Diameter; Overall Dimension 6.25 Inch Length X 6 Inch Width X 4.25 Inch Height; Includes Green Grounding Screw; Application Wet Location; Applicable Standard Federal Specification WC-586D, mil F28675; GEC Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121314
• UPC 12 Digit: 783936210155
• SKU Name: klrk gecxt2

Resources

• Manufacturer Spec Sheet
