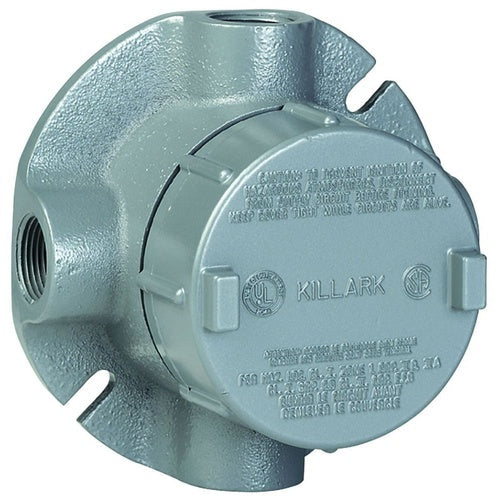

Killark GECXTF-1M 1/2" Conduit Body

Product Specifications

• UPC: 78393621105
• Capacity: 19 CU INCH
• Shape: ROUND
• Cover Type: INTERNALLY THREADED
• Cover Opening Diameter: 2-11/16 INCH
• Enclosure: CLASS I GROUP C D, CLASS I ZONE 1 GROUP IIA IIB
• Material: ELECTRO ZINC CHROMATE SEALED ELECTROSTATICALLY APPLIED POWDER COATED DURALOY IRON ALLOY BODY, ELECTROSTATICALLY APPLIED POWDER COATED COPPER FREE ALUMINUM COVER
• Mounting: FLANGED
• Approval: UL 886, CSA C22.2
• Additional Information: WITH GROUND SCREW
• Catalog Number: GECXTF-1M
• Brand Name: HUBBELL[R]
• Model: GECXTF
• Style: X
• Hub Size: 1/2 INCH
• Hub Type: EXTERNAL
• Number Of Hubs: 4
• Hub Location: (4) SIDE
• Catalog Description: 1/2" GEC OUTLET BODY XTF TYPE, IRON
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Electro Zinc Chromate Sealed Electrostatically Applied Powder Coated Duraloy Iron Alloy Body, Electrostatically Applied Powder Coated Copper Free Aluminum Cover Material; Round Shape; 1/2 Inch Hub Size; 4 Hub(S); UL 886, CSA C22.2 Approval; Flanged Mounting; Class I Group C D, Class I Zone 1 Group Iia Iib Enclosure; Internally Threaded Cover Type; 19 Cu Inch Capacity; X Style; (4) Side Hub Location; External Hub Type; 2-11/16 Inch Cover Opening Diameter; HUBBELL[R] Brand; With Ground Screw; GECXTF Model
• Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121314
• UPC 12 Digit: 783936211053
• SKU Name: klrk gecxtf1m
