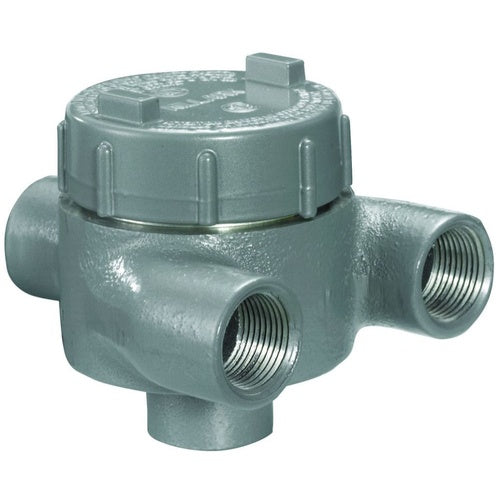

Killark GEUEAT-2 3/4" Explosion-Proof Conduit Body

Overview

Killark GEUEAT-2 3/4" Explosion-Proof Conduit Body

Product Specifications

• UPC: 78393621204
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS I ZONE I GROUP IIA IIB
• Material: ELECTROSTATICALLY APPLIED POWDER COATED COPPER FREE ALUMINUM
• Mounting: FLANGED
• Approval: UL, CSA
• Catalog Number: GEUEAT-2
• Brand Name: KILLARK[R]
• Model: GEC
• Hub Size: 3/4 INCH
• Number Of Hubs: 4
• Hub Location: FEED THROUGH, (3) SIDE, (1) DOWN
• Shape: ROUND
• Cover Type: INTERNALLY THREADED
• Catalog Description: 3/4" GEU OUTLET BODY UEAT TYPE, ALUMINUM
• Category: Steel Fs & Fd Type Boxes & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; Round Shape; 3/4 Inch Hub Size; 4 Hub(S); UL, CSA Approval; Flanged Mounting; Class I Div 1 and 2 Group C D, Class I Zone I Group Iia Iib Enclosure; Internally Threaded Cover Type; Feed Through, (3) Side, (1) Down Hub Location; KILLARK[R] Brand; GEC Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121314
• UPC 12 Digit: 783936212043
• SKU Name: klrk geueat2
