Overview

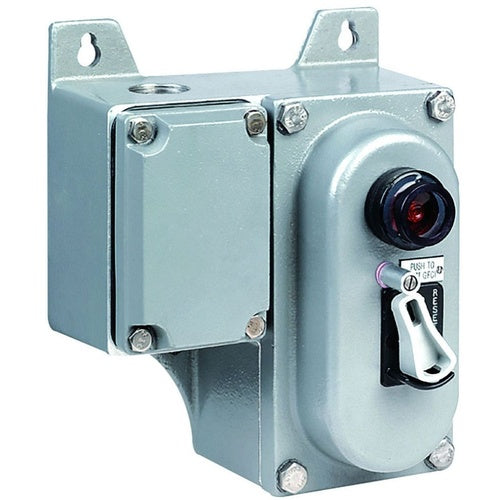

Killark GFCS30201 1P Ground Fault Control Station

Product Specifications

• UPC: 78393611268
• Approval: UL, CSA
• Additional Information: Number of Poles 1; Trip Current 30 Milliampere; Breaker Current 20 Ampere; Voltage Rating 120 VAC
• Catalog Number: GFCS30201
• Model: GFCS
• Type: Pushbutton and Pilot Light
• Enclosure: Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group IIA IIB+H2, Class II Div 1 and 2 Group E F G, Class III Div 1 and 2, NEMA 3B/3C/3D/7B/7C/7D/9E/9F/9G
• Material: Copper Free Cast Aluminum, Stainless Steel
• Finish: Gray Powder Epoxy Polyester
• Size: 7-3/8 Inch W x 7-7/8 H
• Cable/Conduit Entry: 1 Inch NPT
• Catalog Description: GFCS SERIES - ALUMINUM FEED-THRU 1-POLE GROUND FAULT CONTROL STATION -FACTORY SEALED - 30 MILLIAMP TRIP - 20A BREAKER - 120VAC - HUB SIZE 1INCH NPT
• Category: Control Station Complete Assemblies
• Full Technical Description: Pushbutton and Pilot Light Type; Copper Free Cast Aluminum, Stainless Steel Material; 7-3/8 Inch W X 7-7/8 H Size; Gray Powder Epoxy Polyester Finish; UL, CSA Approval; Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group Iia IIB+H2, Class II Div 1 and 2 Group E F G, Class III Div 1 and 2, NEMA 3B/3C/3D/7B/7C/7D/9E/9F/9G Enclosure; 1 Inch NPT Cable/Conduit Entry; Number of Poles 1; Trip Current 30 Milliampere; Breaker Current 20 Ampere; Voltage Rating 120 VAC; GFCS Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: General Purpose Control Station
• Unspsc: 39122216
• UPC 12 Digit: 783936112688
• SKU Name: klrk gfcs30201

Resources

• Manufacturer Spec Sheet
