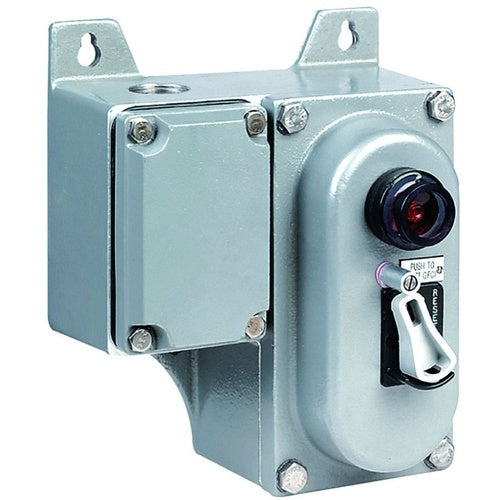

Killark GFCS30302 2P Ground Fault Control Station

Overview

Killark GFCS30302 2P Ground Fault Control Station

Product Specifications

• Actuator: Lever, push button, and pilot light
• Standard: UL, CSA
• Type: Aluminum factory sealed ground fault control station
• Voltage Rating: 120/240 VAC
• Amperage Rating: 30 A
• Application: GFCS Series of ground fault control stations are used for the additional safety of personnel, and for equipment protection in remote areas.
• Brand Name: KILLARK
• Enclosure: Cast aluminum enclosure
• Indicator: Pilot light
• Number Of Poles: 2
• Size: 7-7/8 H x 7-3/8 W x 4-27/32 D
• Special Features: Factory sealed ground fault chamber (Assemblies in Group B areas must be sealed within 6 of enclosure. Other area classifications do not require the use of seals.). 1 NPT top and bottom conduit openings. External Push-to-Test button and pilot light for monitoring. On-Off-Trip-Reset external handle can be locked in On-Off positions. 5ma ground fault circuit breaker for people protection. 30ma ground fault circuit breaker for equipment protection and heat tracing circuits. Electrical rating - 120 VAC (single pole), 120/240 VAC (two pole) (10,000 AIC).
• Catalog Description: GFCS SERIES - ALUMINUM FEED-THRU 2-POLE GROUND FAULT CONTROL STATION -FACTORY SEALED - 30 MILLIAMP TRIP - 30A BREAKER - 120/240VAC - HUB SIZE1INCH NPT
• Category: Control Station Complete Assemblies
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Unspsc: 39122216
• UPC 12 Digit: 783936112718
• SKU Name: klrk gfcs30302
