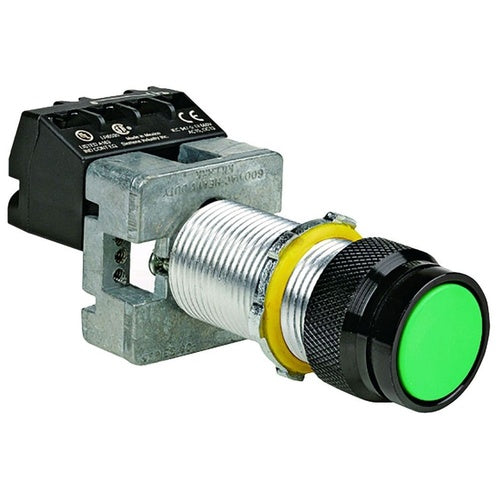

Killark GO1-GX1B-N34 Single Pushbutton Assembly

Overview

Killark GO1-GX1B-N34 Single Pushbutton Assembly

Product Specifications

• UPC: 78393622140
• Enclosure: Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/4/4X/7B/7C/7D/9E/9F/9G
• Approval: UL, CSA
• Additional Information: Barrel Type Long
• Catalog Number: GO1-GX1B N34
• Model: G
• Type: Flush
• Operation Type: Momentary
• Contact Configuration: 1NO
• Contact Rating: 600 VAC 10 Ampere, 250 VDC 2.5 Ampere
• Cap/Lens Color: Green
• Enclosure Material: Aluminum
• Catalog Description: KILLARK GO SERIES OPERATORS ARE A COMPONENT USE IN CONJUNCTION WITH A HAZARDOUS LOCATION ENCLOSURE TO PROVIDE CONTROL SOLUTIONS IN FOR; START/STOP MOTOR FUNCTIONS, LED PILOT LIGHT INDICATIONS AND MORE. UTILIZED IN CLASS 1 DIVISION 1 & 2, CLASS 1 ZONE 1 & 2 AREAS FOR INDOOR AND OUTDOOR USE. UL LISTED AND CSA CERTIFIED.
• Category: Push Button Complete Assemblies
• Full Technical Description: Flush Type; 1NO Contact Configuration; Momentary Operation Type; Aluminum Enclosure Material; 600 VAC 10 Ampere, 250 VDC 2.5 Ampere Contact Rating; UL, CSA Approval; Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/4/4X/7B/7C/7D/9E/9F/9G Enclosure; Green Cap/Lens Color; Barrel Type Long; G Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Non Illuminated Pushbutton Switch
• Unspsc: 39122216
• UPC 12 Digit: 783936221403
• SKU Name: klrk go1gx1bn34

Resources

• Manufacturer Spec Sheet
