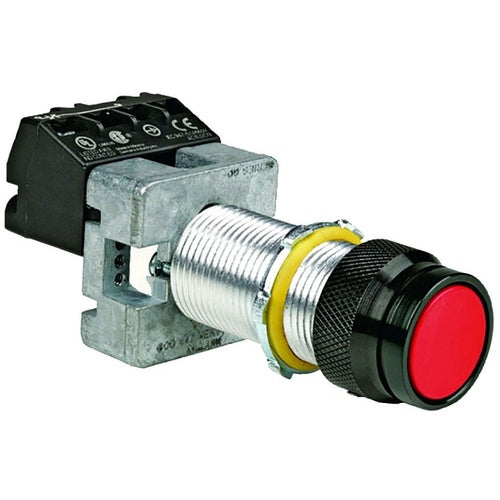

Killark GO1-RX3C-N34 Red Momentary Single Pushbutton

Overview

Killark GO1-RX3C-N34 Red Momentary Single Pushbutton

Product Specifications

• UPC: 78393622152
• Approval: UL, CSA
• Catalog Number: GO1-RX3C N34
• Model: G
• Type: Long
• Operation Type: Momentary
• Contact Configuration: 1NO-1NC
• Contact Rating: 600 Volt AC
• Cap/Lens Color: Red
• Enclosure: Class I Div 1 and 2 Group BCD, Class II Div 1 and 2 Group EFG, Class III NEMA 3, 4, 4X, 7BCD, 9EFG
• Catalog Description: KILLARK GO SERIES OPERATORS ARE A COMPONENT USE IN CONJUNCTION WITH A HAZARDOUS LOCATION ENCLOSURE TO PROVIDE CONTROL SOLUTIONS IN FOR; START/STOP MOTOR FUNCTIONS, LED PILOT LIGHT INDICATIONS AND MORE. UTILIZED IN CLASS 1 DIVISION 1 & 2, CLASS 1 ZONE 1 & 2 AREAS FOR INDOOR AND OUTDOOR USE. UL LISTED AND CSA CERTIFIED.
• Category: Push Button Complete Assemblies
• Full Technical Description: Long Type; 1NO-1NC Contact Configuration; Momentary Operation Type; 600 Volt AC Contact Rating; UL, CSA Approval; Class I Div 1 and 2 Group BCD, Class II Div 1 and 2 Group EFG, Class III NEMA 3, 4, 4X, 7BCD, 9EFG Enclosure; Red Cap/Lens Color; G Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Non Illuminated Pushbutton Switch
• Unspsc: 39122216
• UPC 12 Digit: 783936221526
• SKU Name: klrk go1rx3cn34
