Overview

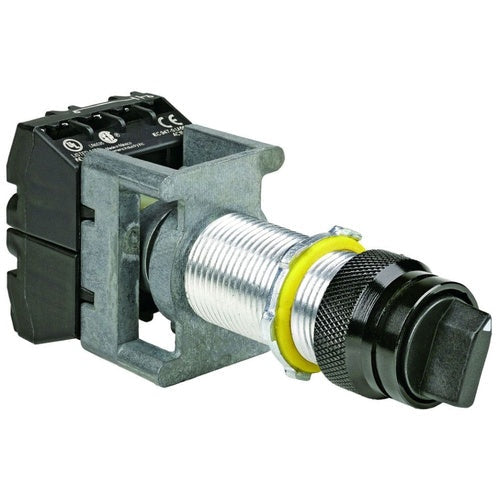

Killark GO25-3C3G Pos Short 1No 1Nc Contacts

Product Specifications

• UPC: 78393622306
• Throw: Left-Center-Right
• Enclosure Material: Aluminum
• Actuator Material: Aluminum
• Bezel Material: Aluminum
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 7C/7D/9E/9F/9G
• Approval: UL, CSA
• Additional Information: Barrel Type Short
• Catalog Number: GO25-3C3G
• Model: G
• Type: Knob
• Size: 3/4 Inch-14 TPI NPSM
• Contact Rating: 120/240/480/600 VAC at 10 Ampere, 125/250 VDC at 2.5 Ampere
• Operation Type: Maintained
• Contact Configuration: 1NO-1NC Universal
• Number Of Positions: 3
• Catalog Description: KILLARK GO SERIES OPERATORS ARE A COMPONENT USE IN CONJUNCTION WITH A HAZARDOUS LOCATION ENCLOSURE TO PROVIDE CONTROL SOLUTIONS IN FOR; START/STOP MOTOR FUNCTIONS, LED PILOT LIGHT INDICATIONS AND MORE. UTILIZED IN CLASS 1 DIVISION 1 & 2, CLASS 1 ZONE 1 & 2 AREAS FOR INDOOR AND OUTDOOR USE. UL LISTED AND CSA CERTIFIED.
• Category: Selector Switch Complete Assemblies
• Full Technical Description: Knob Type; 3/4 Inch-14 TPI NPSM Size; 1NO-1NC Universal Contact Configuration; Maintained Operation Type; Aluminum Enclosure Material; 120/240/480/600 VAC at 10 Ampere, 125/250 VDC at 2.5 Ampere Contact Rating; UL, CSA Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 7C/7D/9E/9F/9G Enclosure; 3 Position(S); Aluminum Bezel Material; Aluminum Actuator Material; Left-Center-Right Throw; Barrel Type Short; G Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Non Illuminated Selector Switch
• Unspsc: 39122216
• UPC 12 Digit: 783936223063
• SKU Name: klrk go253c3g

Resources

• Manufacturer Spec Sheet
