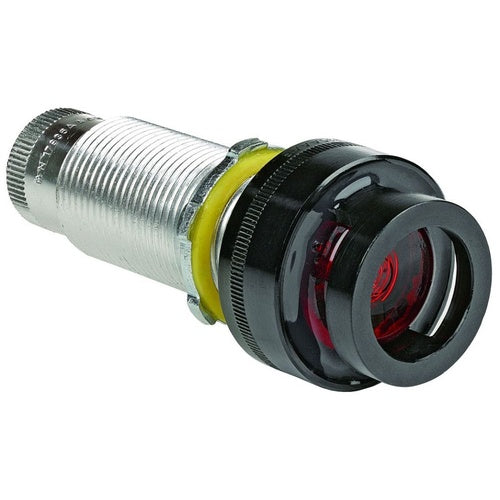

Killark GOL3R-LED Red Extended Pilot Light

Overview

Killark GOL3R-LED Red Extended Pilot Light

Product Specifications

• UPC: 78393622531
• Approval: UL, CSA
• Catalog Number: GOL3R LED
• Brand Name: KILLARK[R]
• Model: G
• Constructional Feature: EXPLOSION PROOF
• Lamp Input Type: 110 TO 120 V FULL VOLTAGE
• Lamp Type: LED
• Lens Color: RED
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS I ZONE 1 AND 2 GROUP IIB IIA, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/4/4X/7B/7C/7D/9E/9F/9G
• Catalog Description: KILLARK GO SERIES OPERATORS ARE A COMPONENT USE IN CONJUNCTION WITH A HAZARDOUS LOCATION ENCLOSURE TO PROVIDE CONTROL SOLUTIONS IN FOR; START/STOP MOTOR FUNCTIONS, LED PILOT LIGHT INDICATIONS AND MORE. UTILIZED IN CLASS 1 DIVISION 1 & 2, CLASS 1 ZONE 1 & 2 AREAS FOR INDOOR AND OUTDOOR USE. UL LISTED AND CSA CERTIFIED.
• Category: Pilot Light Complete Assemblies
• Full Technical Description: UL, CSA Approval; Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group Iib Iia, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/4/4X/7B/7C/7D/9E/9F/9G Enclosure; LED Lamp Type; Explosion Proof; 110 to 120 V Full Voltage Lamp Input Type; Red Lens Color; KILLARK[R] Brand; G Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Indicating Light
• Unspsc: 39122216
• UPC 12 Digit: 783936225319
• SKU Name: klrk gol3rled
