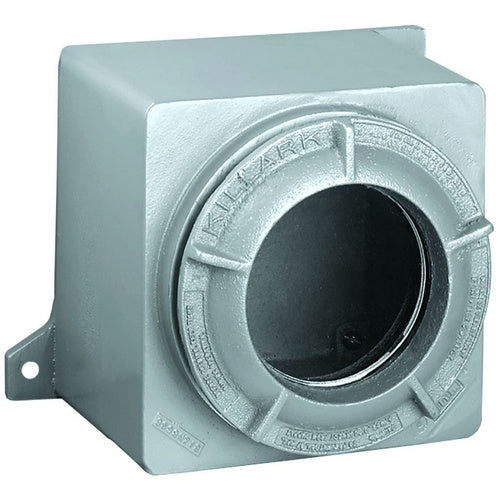

Killark GRE-300L Explosion-Proof Junction Box

Overview

Killark GRE-300L Explosion-Proof Junction Box

Product Specifications

• UPC: 78393623112
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS I ZONE 1 AND 2, GROUP IIIA, IIIB+H2, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III DIV 1 AND 2, NEMA 3/4/4X/7B/7C/7D/9E/9F/9G, IP66
• Body Material: COPPER FREE ALUMINUM
• Body Finish: GRAY EPOXY POLYESTER POWDER COATED
• Cover Finish: GRAY EPOXY POLYESTER POWDER COATED
• Mounting: LUG
• Approval: UL 886, UL 1203, CSA C22.2, FM
• Catalog Number: GRE-300L
• Brand Name: KILLARK[R]
• Model: GR
• Hub Size: 2 INCH
• Overall Size: 6 5/8 INCH L X 5 1/2 INCH W X 5 23/32 INCH D
• Inner Size: 5 3/4 INCH L X 4 5/8 INCH W X 3 9/32 INCH D
• Cover Type: THREADED
• Cover Opening Diameter: 4 11/32 INCH
• Catalog Description: GR SERIES, 4.63 X 5.75 X 3.28, CLASS I, II, III, BCDEFG, CAST ALUMINUM, TYPE 4, VIEWING LENS SCREW COVER ENCLOSURE
• Category: Cast Boxes
• Full Technical Description: 6 5/8 Inch L X 5 1/2 Inch W X 5 23/32 Inch D Overall Size; 5 3/4 Inch L X 4 5/8 Inch W X 3 9/32 Inch D Inner Size; 2 Inch Hub Size; UL 886, UL 1203, CSA C22.2, FM Approval; Lug Mounting; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2, Group Iiia, IIIB+H2, Class II Div 1 and 2 Group E F G, Class III Div 1 and 2, NEMA 3/4/4X/7B/7C/7D/9E/9F/9G, IP66 Enclosure; Threaded Cover Type; Copper Free Aluminum Body Material; Gray Epoxy Polyester Powder Coated Body Finish; 4 11/32 Inch Cover Opening Diameter; Gray Epoxy Polyester Powder Coated Cover Finish; KILLARK[R] Brand; GR Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Junction Box
• Unspsc: 39121314
• UPC 12 Digit: 783936231129
• SKU Name: klrk gre300l

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
