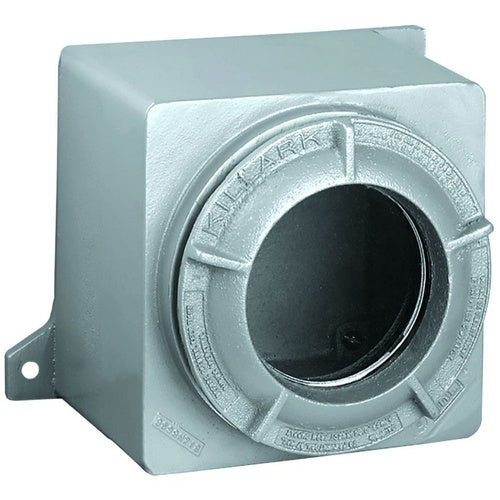

Killark GRHA-775L Explosion-Proof Junction Box

Product Specifications

• UPC: 78393623202
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS I ZONE 1 AND 2, GROUP IIIA, IIIB+H2, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III DIV 1 AND 2, NEMA 3/4/4X/7B/7C/7D/9E/9F/9G, IP66
• Body Material: COPPER FREE ALUMINUM
• Body Finish: GRAY EPOXY POLYESTER POWDER COATED
• Cover Finish: GRAY EPOXY POLYESTER POWDER COATED
• Mounting: LUG
• Approval: UL 886, UL 1203, CSA C22.2, FM
• Catalog Number: GRHA-775L
• Brand Name: KILLARK[R]
• Model: GR
• Hub Size: 4 INCH
• Overall Size: 12 INCH L X 11 INCH W X 16 3/16 INCH D
• Inner Size: 10 1/2 INCH L X 9 1/2 INCH W X 13 9/16 INCH D
• Cover Type: THREADED
• Cover Opening Diameter: 9 5/8 INCH
• Catalog Description: GR SERIES, 9.5 X 10.5 X 13.56, CLASS I, II, III, BCDEFG, CAST ALUMINUM, TYPE 4, VIEWING LENS SCREW COVER ENCLOSURE
• Category: Cast Boxes
• Full Technical Description: 12 Inch L X 11 Inch W X 16 3/16 Inch D Overall Size; 10 1/2 Inch L X 9 1/2 Inch W X 13 9/16 Inch D Inner Size; 4 Inch Hub Size; UL 886, UL 1203, CSA C22.2, FM Approval; Lug Mounting; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2, Group Iiia, IIIB+H2, Class II Div 1 and 2 Group E F G, Class III Div 1 and 2, NEMA 3/4/4X/7B/7C/7D/9E/9F/9G, IP66 Enclosure; Threaded Cover Type; Copper Free Aluminum Body Material; Gray Epoxy Polyester Powder Coated Body Finish; 9 5/8 Inch Cover Opening Diameter; Gray Epoxy Polyester Powder Coated Cover Finish; KILLARK[R] Brand; GR Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Junction Box
• Unspsc: 39121314
• UPC 12 Digit: 783936232027
• SKU Name: klrk grha775l
