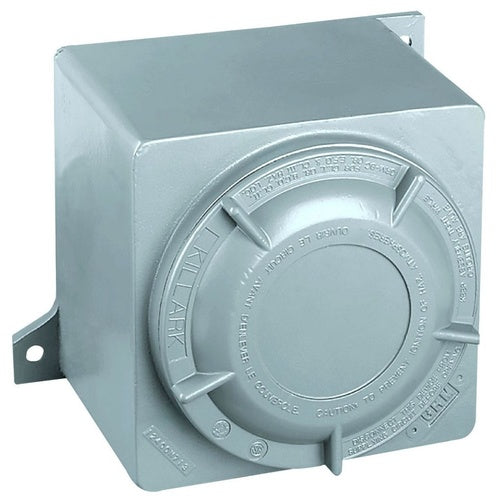

Killark GRL Explosion-Proof Junction Box

Product Specifications

• UPC: 78393623005
• Body Material: Copper Free Aluminum
• Body Finish: Electrostatically Applied Gray Epoxy Polyester Powder Coated
• Cover Finish: Electrostatically Applied Gray Epoxy Polyester Powder Coated
• Mounting: Lug
• Approval: UL 886/1203, CSA C22.2, FM
• Additional Information: Application Hazardous Location; Includes Blank Cover
• Catalog Number: GRL
• Model: GR
• Hub Size: 2 Inch
• Overall Size: 10-1/2 Inch L x 8-7/8 Inch W x 7-3/16 Inch D
• Inner Size: 9-1/8 Inch L x 7-5/8 Inch W x 4-15/16 Inch D
• Cover Type: Threaded
• Cover Opening Diameter: 7-7/8 Inch
• Enclosure: Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group IIB+H2 IIA, Class II Div 1 and 2 Group E F G, Class III Div 1 and 2, NEMA 3/4/4X/7B/7C/7D/9E/9F/9G, IP66
• Catalog Description: GR SERIES, 7.63 X 9.13 X 4.93, CLASS I, II, III, BCDEFG, CAST ALUMINUM, TYPE 4, SCREW COVER ENCLOSURE
• Category: Nema Type 9 Metallic Enclosures, Boxes, Cabinets
• Full Technical Description: 10-1/2 Inch L X 8-7/8 Inch W X 7-3/16 Inch D Overall Size; 9-1/8 Inch L X 7-5/8 Inch W X 4-15/16 Inch D Inner Size; 2 Inch Hub Size; UL 886/1203, CSA C22.2, FM Approval; Lug Mounting; Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group IIB+H2 Iia, Class II Div 1 and 2 Group E F G, Class III Div 1 and 2, NEMA 3/4/4X/7B/7C/7D/9E/9F/9G, IP66 Enclosure; Threaded Cover Type; Copper Free Aluminum Body Material; Electrostatically Applied Gray Epoxy Polyester Powder Coated Body Finish; 7-7/8 Inch Cover Opening Diameter; Electrostatically Applied Gray Epoxy Polyester Powder Coated Cover Finish; Application Hazardous Location; Includes Blank Cover; GR Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Junction Box
• Unspsc: 39121314
• UPC 12 Digit: 783936230054
• SKU Name: klrk grl
