Overview

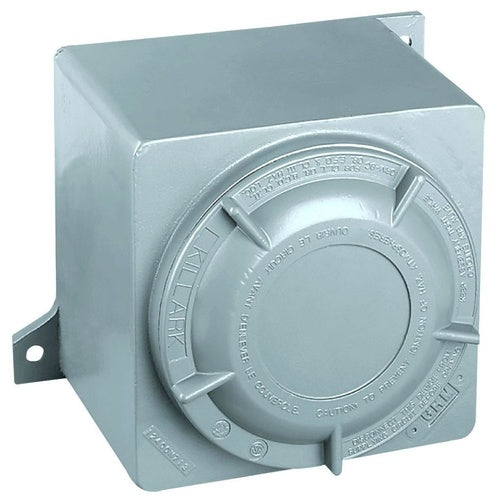

Killark GRM Explosion-Proof Junction Box

Product Specifications

• UPC: 78393623006
• Body Material: Copper Free Aluminum
• Body Finish: Electrostatically Applied Gray Epoxy Polyester Powder Coated
• Cover Finish: Electrostatically Applied Gray Epoxy Polyester Powder Coated
• Mounting: Lug
• Approval: UL 886/1203, CSA C22.2, FM
• Additional Information: Application Hazardous Location; Includes Blank Cover
• Catalog Number: GRM
• Model: GR
• Hub Size: 2 Inch
• Overall Size: 6-7/8 Inch L x 6-7/8 Inch W x 5-15/16 Inch D
• Inner Size: 6 Inch L x 6 Inch W x 4-3/16 Inch D
• Cover Type: Threaded
• Cover Opening Diameter: 5-9/32 Inch
• Enclosure: Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group IIB+H2 IIA, Class II Div 1 and 2 Group E F G, Class III Div 1 and 2, NEMA 3/4/4X/7B/7C/7D/9E/9F/9G, IP66
• Catalog Description: GR SERIES, 6 X 6 X 4.18, CLASS I, II, III, BCDEFG, CAST ALUMINUM, TYPE 4, SCREW COVER ENCLOSURE
• Category: Nema Type 9 Metallic Enclosures, Boxes, Cabinets
• Full Technical Description: 6-7/8 Inch L X 6-7/8 Inch W X 5-15/16 Inch D Overall Size; 6 Inch L X 6 Inch W X 4-3/16 Inch D Inner Size; 2 Inch Hub Size; UL 886/1203, CSA C22.2, FM Approval; Lug Mounting; Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group IIB+H2 Iia, Class II Div 1 and 2 Group E F G, Class III Div 1 and 2, NEMA 3/4/4X/7B/7C/7D/9E/9F/9G, IP66 Enclosure; Threaded Cover Type; Copper Free Aluminum Body Material; Electrostatically Applied Gray Epoxy Polyester Powder Coated Body Finish; 5-9/32 Inch Cover Opening Diameter; Electrostatically Applied Gray Epoxy Polyester Powder Coated Cover Finish; Application Hazardous Location; Includes Blank Cover; GR Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Junction Box
• Unspsc: 39121314
• UPC 12 Digit: 783936230061
• SKU Name: klrk grm

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
