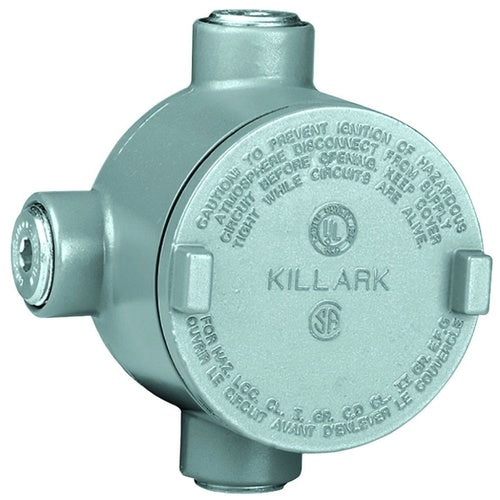

Killark GRR-2 3/4" Explosion-Proof Conduit Body

Overview

Killark GRR-2 3/4" Explosion-Proof Conduit Body

Product Specifications

• UPC: 78393623008
• Shape: Round
• Number Of Plugs: 3
• Cover Type: Blank, Externally Threaded
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Approval: UL, CSA
• Additional Information: Includes Blank Cover
• Catalog Number: GRR-2
• Model: GRR
• Style: T
• Hub Size: 3/4 Inch
• Hub Type: External
• Number Of Hubs: 3
• Hub Location: Feed Through, (1) Side, (1) Top, (1) Down
• Capacity: 13 Cu Inch
• Catalog Description: 3/4" ALUMINUM GRR OUTLET BODY, W/ BLANK AL COVER
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; Round Shape; 3/4 Inch Hub Size; 3 Hub(S); UL, CSA Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; Blank, Externally Threaded Cover Type; 13 Cu Inch Capacity; T Style; 3 Plug(S); Feed Through, (1) Side, (1) Top, (1) Down Hub Location; External Hub Type; Includes Blank Cover; GRR Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121314
• UPC 12 Digit: 783936230085
• SKU Name: klrk grr2

Resources

• Manufacturer Spec Sheet
