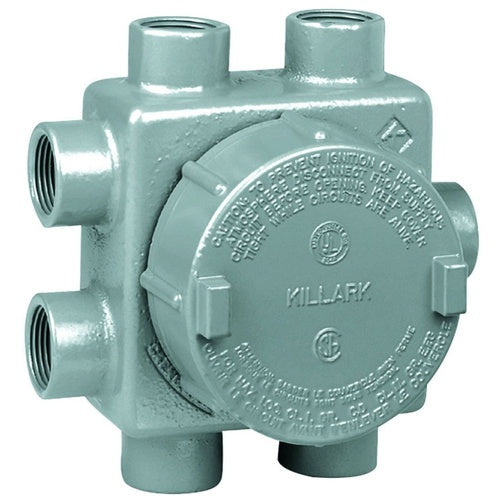

Killark GRSA Explosion-Proof Conduit Body

Overview

Killark GRSA Explosion-Proof Conduit Body

Product Specifications

• UPC: 78393623011
• Number Of Plugs: 5
• Cover Type: Blank, Internally Threaded
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Approval: UL, CSA
• Additional Information: Includes Blank Cover
• Catalog Number: GRSA
• Model: GR
• Hub Size: 3/4 Inch
• Hub Type: External
• Number Of Hubs: 8
• Hub Location: Feed Through, (3) Side, (2) Top, (2) Down, (1) Back
• Capacity: 26.5 Cu Inch
• Shape: Square
• Catalog Description: 3/4" ALUMINUM GR OUTLET BODY, W/ BLANK AL COVER
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; Square Shape; 3/4 Inch Hub Size; 8 Hub(S); UL, CSA Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; Blank, Internally Threaded Cover Type; 26.5 Cu Inch Capacity; 5 Plug(S); Feed Through, (3) Side, (2) Top, (2) Down, (1) Back Hub Location; External Hub Type; Includes Blank Cover; GR Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121314
• UPC 12 Digit: 783936230115
• SKU Name: klrk grsa

Resources

• Manufacturer Spec Sheet
