Overview

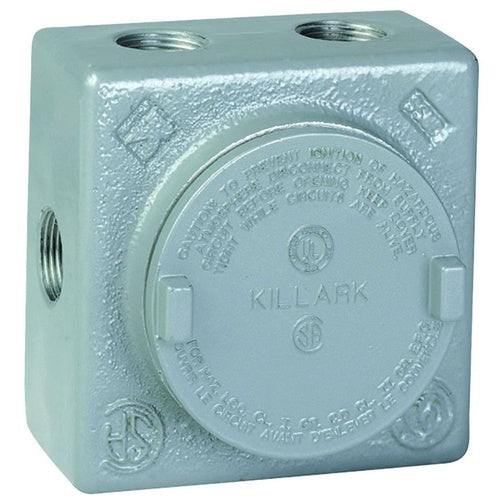

Killark GRSS-1 1/2" Explosion-Proof Conduit Body

Product Specifications

• UPC: 78393623012
• Number Of Plugs: 4
• Cover Type: Blank
• Cover Opening Diameter: 3-1/8 Inch
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Approval: UL, CSA
• Additional Information: Includes Grounding Screw
• Catalog Number: GRSS-1
• Model: GRSS
• Hub Size: 1/2 Inch
• Hub Type: Internal
• Number Of Hubs: 7
• Hub Location: (2) Side, (2) Top, (2) Down, (1) Back
• Capacity: 29 Cu Inch
• Shape: Square
• Catalog Description: 1/2" ALUMINUM GRSS OUTLET BODY, 7 INTERNAL HUB CONFIG
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; Square Shape; 1/2 Inch Hub Size; 7 Hub(S); UL, CSA Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; Blank Cover Type; 29 Cu Inch Capacity; 4 Plug(S); (2) Side, (2) Top, (2) Down, (1) Back Hub Location; Internal Hub Type; 3-1/8 Inch Cover Opening Diameter; Includes Grounding Screw; GRSS Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121314
• UPC 12 Digit: 783936230122
• SKU Name: klrk grss1
