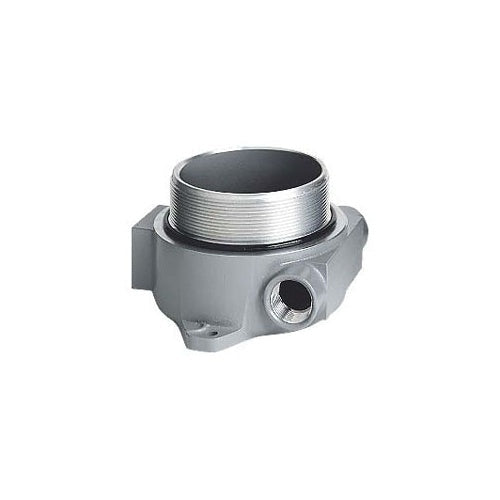

Killark HKB-20 3/4Npt Single Cover Box

Overview

Killark HKB-20 3/4Npt Single Cover Box

Product Specifications

• Brand Name: KILLARK
• Type: Aluminum instrument/device enclosure
• Cable Entry: 0.75
• Color: Gray
• Cubic Capacity: 31 cu. in.
• Material: Copper-Free Aluminum
• Mounting: Mounting lugs
• Size: 4-13/16 H x 4-3/4 W x 3-3/16 D
• Special Features: Enclosures are explosion proof, dust/ignition proof, weather proof, and tamper resistant. HK Series boxes are cast from a copper-free aluminum alloy. Neoprene O-rings are provided with HK boxes to assure water resistance in NEMA 4/IP66 conditions. HKB box
• Standard: UL, CSA, FM APPROVED
• Catalog Description: HK SERIES - ALUMINUM INSTRUMENT/DEVICE ENCLOSURE - HUB SIZE 3/4 INCH NPT(ON THE SIDE)
• Category: Cast Boxes
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Unspsc: 39121314
• UPC 12 Digit: 783936374505
• SKU Name: klrk hkb20

Resources

• Manufacturer Spec Sheet
