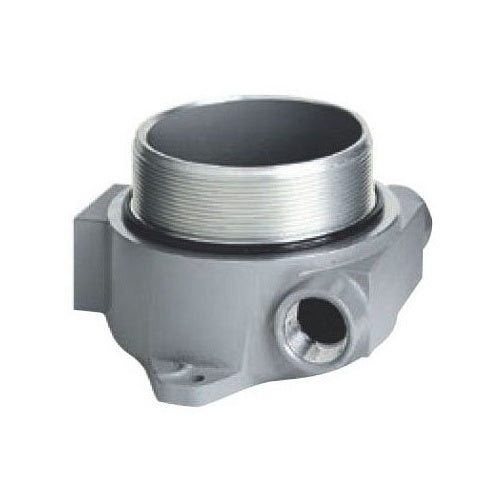

Killark HKB-2D Cast Aluminum Box & Cover

Overview

Killark HKB-2D Cast Aluminum Box & Cover

Product Specifications

• UPC: 78393629543
• Body Finish: ELECTROSTATICALLY APPLIED SILVER EPOXY POWDER PAINTED
• Cover Material: COPPER FREE ALUMINUM
• Size: 2 INCH DIA X 5 15/16 INCH H
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS I ZONE 1 AND 2 GROUP IIA IIB+H2, CLASS II DIV 1AND 2 GROUP E F G, CLASS III DIV 1 AND 2, NEMA 3/4/4X/7B/7C/7D/9E/9F/9G
• Used On: FLOW MEASUREMENT DEVICE, GAS DETECTOR, PH ANALYZER, PRESSURE GAUGE, OXYGEN/COMBUSTIBLE GAS SENSOR, METHANE GAS/H2S MONITOR, TRANSDUCER, LEVEL DETECTOR, PRESSURE SWITCH, TEMPERATURE CONTROL, TWO WIRE TRANSMITTER
• Approval: UL, CSA, FM
• Catalog Number: HKB-2D
• Brand Name: KILLARK[R]
• Model: HK
• Constructional Feature: DUST IGNITION PROOF, EXPLOSION PROOF, TAMPER RESISTANT, WEATHER PROOF
• Hub Size: 3/4 INCH NPT
• Hub Location: OFFSET FEED THROUGH
• Cover Type: 2 INCH DOME
• Body Material: COPPER FREE ALUMINUM
• Catalog Description: HK SERIES, 3-1/2 ID RD BODY 3" DP & 2" DOME COVER, CLASS I, II, III, BCDEFG, UL/CSA/FM, CAST ALUMINUM, TYPE 4, INSTRUMENT ENCLOSURE
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: 2 Inch Dia X 5 15/16 Inch H Size; Flow Measurement Device, Gas Detector, PH Analyzer, Pressure Gauge, Oxygen/Combustible Gas Sensor, Methane Gas/H2S Monitor, Transducer, Level Detector, Pressure Switch, Temperature Control, Two Wire Transmitter Used on; 3/4 Inch NPT Hub Size; UL, CSA, FM Approval; Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group Iia IIB+H2, Class II Div 1AND 2 Group E F G, Class III Div 1 and 2, NEMA 3/4/4X/7B/7C/7D/9E/9F/9G Enclosure; 2 Inch Dome Cover Type; Copper Free Aluminum Body Material; Dust Ignition Proof, Explosion Proof, Tamper Resistant, Weather Proof; Copper Free Aluminum Cover Material; Offset Feed Through Hub Location; Electrostatically Applied Silver Epoxy Powder Painted Body Finish; KILLARK[R] Brand; HK Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Instrument Enclosure
• Unspsc: 39121314
• UPC 12 Digit: 783936295435
• SKU Name: klrk hkb2d

Resources

• Manufacturer Spec Sheet
