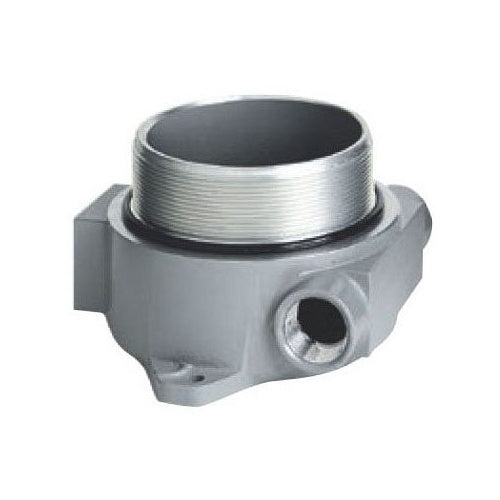

Killark HKB-4D Cast Aluminum Box & Cover

Overview

Killark HKB-4D Cast Aluminum Box & Cover

Product Specifications

• UPC: 78393629545
• Body Material: CAST COPPER FREE ALUMINUM
• Body Finish: ELECTROSTATICALLY APPLIED SILVER EPOXY POWDER PAINTED
• Cover Material: CAST COPPER FREE ALUMINUM
• Size: 5 15/64 INCH W X 7 3/4 INCH H
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS I ZONE 1 AND 2 GROUP IIA IIB +H2, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/4/7B/7C/7D/9E/9F/9G
• Used On: FLOW MEASUREMENT DEVICE, GAS/LEVEL DETECTOR, TEMPERATURE/METHANE GAS MONITOR, TEMPERATURE/TWO WIRE TRANSMITTER, PH ANALYZER, PRESSURE GAUGE, OXYGEN/COMBUSTIBLE GAS SENSOR, H2S MONITOR, PRESSURE SWITCH, TRANSDUCER
• Approval: UL, CSA, FM
• Additional Information: INCLUDES NEOPRENE RUBBER O-RING SEALING GASKET
• Catalog Number: HKB-4D
• Brand Name: KILLARK[R]
• Model: HK
• Constructional Feature: DUST IGNITION PROOF, EXPLOSION PROOF, TAMPER RESISTANT, WEATHER PROOF
• Number Of Hubs: 2
• Hub Size: 3/4 INCH NPT
• Hub Location: OFFSET FEED THROUGH
• Cover Type: (1) 4 INCH DOME
• Catalog Description: HK SERIES, 3-1/2 ID RD BODY 3" DP & 4" DOME COVER CLASS I, II, III, BCDEFG, UL/CSA/FM, CAST ALUMINUM, TYPE 4, INSTRUMENT ENCLOSURE
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: 5 15/64 Inch W X 7 3/4 Inch H Size; Flow Measurement Device, Gas/Level Detector, Temperature/Methane Gas Monitor, Temperature/Two Wire Transmitter, PH Analyzer, Pressure Gauge, Oxygen/Combustible Gas Sensor, H2S Monitor, Pressure Switch, Transducer Used on; 3/4 Inch NPT Hub Size; 2 Hub(S); UL, CSA, FM Approval; Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group Iia Iib +H2, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/4/7B/7C/7D/9E/9F/9G Enclosure; (1) 4 Inch Dome Cover Type; Cast Copper Free Aluminum Body Material; Dust Ignition Proof, Explosion Proof, Tamper Resistant, Weather Proof; Cast Copper Free Aluminum Cover Material; Offset Feed Through Hub Location; Electrostatically Applied Silver Epoxy Powder Painted Body Finish; KILLARK[R] Brand; Includes Neoprene Rubber O-ring Sealing Gasket; HK Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Instrument Enclosure
• Unspsc: 39121314
• UPC 12 Digit: 783936295459
• SKU Name: klrk hkb4d
