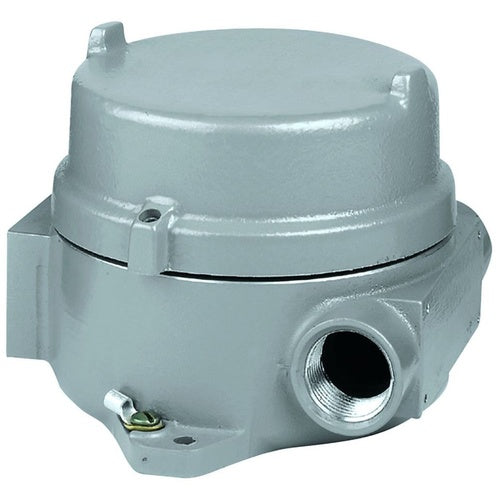

Killark HKB-B Instrument Enclosure

Overview

Killark HKB-B Instrument Enclosure

Product Specifications

• UPC: 78393629541
• Cover Material: Cast Copper Free Aluminum
• Size: 5-15/64 Inch W x 3-7/8 Inch H
• Enclosure: Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group IIA IIB+H2, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/4/7B/7C/7D/9E/9F/9G
• Used On: Flow Measurement Device, Gas/Level Detector, Temperature/Methane Gas Monitor, Temperature/2-Wire Transmitter, PH Analyzer, Pressure Gauge, Oxygen/Combustible Gas Sensor, H2S Monitor, Pressure Switch, Transducer
• Approval: UL, CSA, FM
• Catalog Number: HKB-B
• Constructional Feature: Dust Ignitionproof, Explosionproof, Tamper Resistant, Weatherproof
• Number Of Hubs: 2
• Hub Size: 3/4 Inch NPT
• Hub Location: Offset Feed Through
• Cover Type: (1) Standard Cover
• Body Material: Cast Copper Free Aluminum
• Body Finish: Electrostatically Applied Silver Epoxy Powder Painted
• Catalog Description: HK SERIES, 3-1/2 ID RD BODY 3" DP & FLAT COVER, CLASS I, II, III, BCDEFG, UL/CSA/FM, CAST ALUMINUM, TYPE 4, INSTRUMENT ENCLOSURE
• Category: Nema Type 9 Metallic Enclosures, Boxes, Cabinets
• Full Technical Description: 5-15/64 Inch W X 3-7/8 Inch H Size; Flow Measurement Device, Gas/Level Detector, Temperature/Methane Gas Monitor, Temperature/2-Wire Transmitter, PH Analyzer, Pressure Gauge, Oxygen/Combustible Gas Sensor, H2S Monitor, Pressure Switch, Transducer Used on; 3/4 Inch NPT Hub Size; 2 Hub(S); UL, CSA, FM Approval; Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group Iia IIB+H2, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/4/7B/7C/7D/9E/9F/9G Enclosure; (1) Standard Cover Cover Type; Cast Copper Free Aluminum Body Material; Dust Ignitionproof, Explosionproof, Tamper Resistant, Weatherproof; Cast Copper Free Aluminum Cover Material; Offset Feed Through Hub Location; Electrostatically Applied Silver Epoxy Powder Painted Body Finish
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Instrument Enclosure
• Unspsc: 39121314
• UPC 12 Digit: 783936295411
• SKU Name: klrk hkbb
