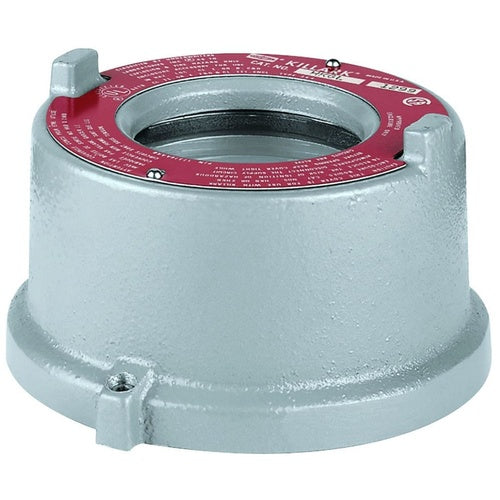

Killark HKGL Explosion-Proof Lens

Overview

Killark HKGL Explosion-Proof Lens

Product Specifications

• UPC: 78393629532
• Catalog Number: HKGL
• Type: Lens Cover
• Used On: HK Series Enclosure
• Constructional Feature: Explosionproof, Dust-Ignition Proof, Weatherproof, Tamper Resistant
• Enclosure: Class I Div 1 and 2 Group A B C D, Class I Zone 1 and 2 Group IIB+H2 IIA, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/4/4X/7BCD/9EFG, IP66
• Additional Information: Material Silver Powder Epoxy Painted Copper Free Aluminum; Includes Nitrile O-Ring, Ground Screw, Stainless Steel Locking Set Screw; Approval UL, CSA, FM
• Catalog Description: HK SERIES, FLAT LENS COVER 2-5/16 VIEWING CLASS I, II, III, BCDEFG, UL/CSA/FM, CAST ALUMINUM, TYPE 4, INSTRUMENT ENCLOSURE
• Category: Cast Boxes
• Full Technical Description: Lens Cover Type; Hk Series Enclosure Used on; Class I Div 1 and 2 Group A B C D, Class I Zone 1 and 2 Group IIB+H2 Iia, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/4/4X/7BCD/9EFG, IP66 Enclosure; Explosionproof, Dust-Ignition Proof, Weatherproof, Tamper Resistant; Material Silver Powder Epoxy Painted Copper Free Aluminum; Includes Nitrile O-ring, Ground Screw, Stainless Steel Locking Set Screw; Approval UL, CSA, FM
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Box/Enclosure General Accessories
• Unspsc: 39121314
• UPC 12 Digit: 783936295329
• SKU Name: klrk hkgl

Resources

• Manufacturer Spec Sheet
