Overview

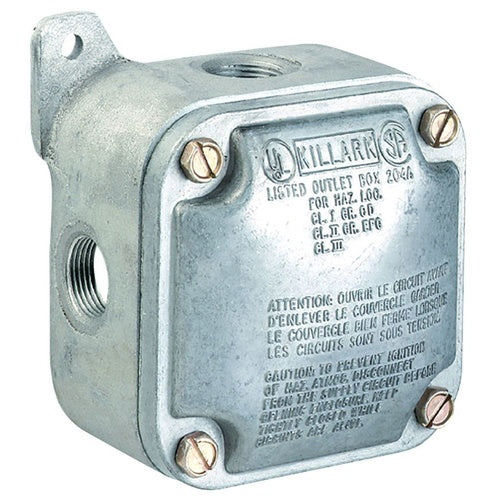

Killark JALX-1 1/2" Aluminum JAL X Type

Product Specifications

• Brand Name: KILLARK
• Type: Aluminum outlet body
• Cable Entry: 0.50
• Color: Gray
• Cubic Capacity: 26.5 cu. in.
• Material: Copper-Free Aluminum
• Mounting: Cast mounting lugs
• Size: 5-7/8 H x 4-3/4 W x 2-7/16 D
• Special Features: Cast mounting lugs. Large wiring area. Furnished with internal ground screw. Four drilled and tapped conduit openings in an x configuration (three close-up plugs included to allow five variations from one body).
• Standard: UL, CSA
• Catalog Description: JAL SERIES - ALUMINUM OUTLET BODY - X TYPE - HUB SIZE 1/2 INCH - VOLUME 26.5 CUBIC INCHES
• Category: Aluminum Conduit Bodies & Covers
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Unclassified Items
• Unspsc: 39121314
• UPC 12 Digit: 783936365084
• SKU Name: klrk jalx1

Resources

• Manufacturer Spec Sheet
