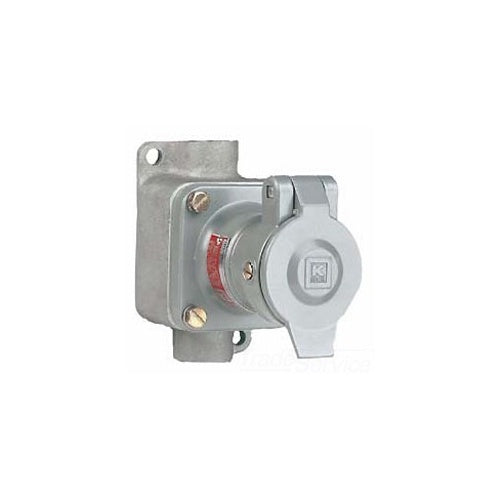

Killark JLC-1 1/2" Aluminum JLC Type B

Overview

Killark JLC-1 1/2" Aluminum JLC Type B

Product Specifications

• UPC: 78393636552
• Approval: UL, CSA
• Catalog Number: JLC-1
• Model: JLC
• Hub Size: 1/2 Inch
• Number Of Hubs: 1
• Hub Location: (1) Bottom
• Shape: Square
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Material: Copper Free Aluminum
• Catalog Description: JL SERIES - ALUMINUM OUTLET BODY - C TYPE - HUB SIZE 1/2 INCH - VOLUME 12.5 CUBIC INCHES
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Copper Free Aluminum Material; Square Shape; 1/2 Inch Hub Size; 1 Hub(S); UL, CSA Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; (1) Bottom Hub Location; JLC Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121314
• UPC 12 Digit: 783936365527
• SKU Name: klrk jlc1

Resources

• Manufacturer Spec Sheet
