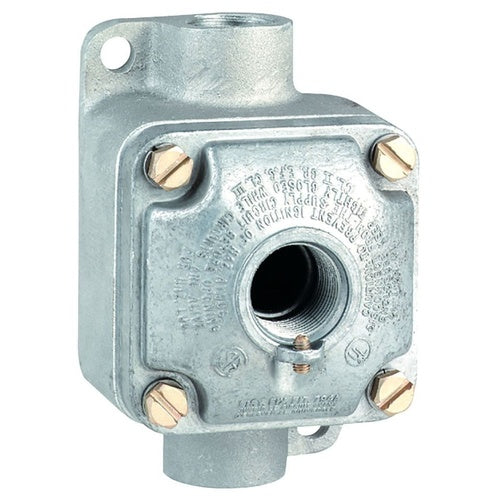

Killark JLC-11 1/2" Aluminum JLC Type W/1

Overview

Killark JLC-11 1/2" Aluminum JLC Type W/1

Product Specifications

• UPC: 78393636558
• Shape: Square
• Cover Type: Screw
• Cover Opening Diameter: 2-3/8 Inch
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Material: Natural Copper Free Aluminum
• Mounting: (2) Lug
• Approval: UL, CSA
• Additional Information: Includes Hub Cover; Application Pulling, Splicing and Maintenance
• Catalog Number: JLC-11
• Model: JLC
• Style: C
• Hub Size: 1/2 Inch
• Hub Type: Internal, External
• Number Of Hubs: 3
• Hub Location: Feed Through, (1) Top
• Capacity: 12.5 Cu Inch
• Catalog Description: JL SERIES - ALUMINUM OUTLET BODY WITH COVER - WITH HUB COVER - BOX TYPE C - BOX HUB SIZE 1/2 INCH - COVER HUB SIZE 1/2 INCH
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Natural Copper Free Aluminum Material; Square Shape; 1/2 Inch Hub Size; 3 Hub(S); UL, CSA Approval; (2) Lug Mounting; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; Screw Cover Type; 12.5 Cu Inch Capacity; C Style; Feed Through, (1) Top Hub Location; Internal, External Hub Type; 2-3/8 Inch Cover Opening Diameter; Includes Hub Cover; Application Pulling, Splicing and Maintenance; JLC Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121314
• UPC 12 Digit: 783936365589
• SKU Name: klrk jlc11
