Overview

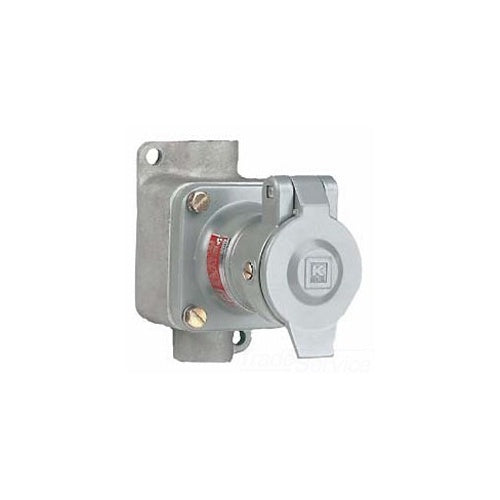

Killark JLC-2 3/4" Aluminum JLC Type B

Product Specifications

• UPC: 78393636554
• Maximum Dc Voltage Rating: 250
• Maximum Dc Voltage Rating Uom: V
• Current Rating: 30 AMPERE
• Frequency Rating: 60 HZ
• Power Rating: 3 HP
• Additional Information: USED ON KRJ, W SERIES RECEPTACLE; HUB SIZE 3/4 INCH
• Catalog Number: JLC-2
• Type: BACK BOX
• Minimum Ac Voltage Rating: 115
• Minimum Ac Voltage Rating Uom: V
• Maximum Ac Voltage Rating: 600
• Maximum Ac Voltage Rating Uom: V
• Minimum Dc Voltage Rating: 250
• Minimum Dc Voltage Rating Uom: V
• Catalog Description: JL SERIES - ALUMINUM OUTLET BODY - C TYPE - HUB SIZE 3/4 INCH - VOLUME 12.5 CUBIC INCHES
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Current Rating 30 Ampere; Frequency Rating 60 Hz; Maximum AC Voltage Rating 600; Maximum AC Voltage Rating - Uom V; Maximum DC Voltage Rating 250; Maximum DC Voltage Rating - Uom V; Minimum AC Voltage Rating 115; Minimum AC Voltage Rating - Uom V; Minimum DC Voltage Rating 250; Minimum DC Voltage Rating - Uom V; Power Rating 3 HP; Type Back Box; Used on Krj, W Series Receptacle; Hub Size 3/4 Inch
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Connector Accessories
• Unspsc: 39121314
• UPC 12 Digit: 783936365541
• SKU Name: klrk jlc2

Resources

• Manufacturer Spec Sheet
