Overview

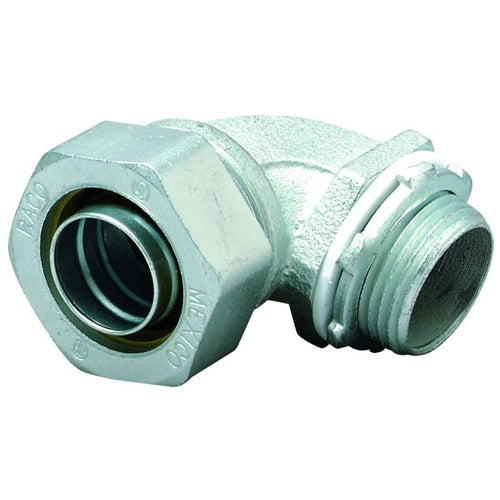

Killark K1009 1" 90-Deg Liquidtight Connector Non-Insulated

Product Specifications

• UPC: 78393699135
• Approval: UL, CSA
• Used On: Metallic/Non-Metallic Conduit
• Additional Information: Connector Size 1-5/8 Inch Dia x 2-3/16 Inch L; Application Hazardous Location
• Catalog Number: K1009
• Brand Name: LIQUIDTIGHT[R]
• Model: K
• Type: 90 Deg
• Throat Type: Non-Insulated
• Trade Size: 1 Inch NPT
• Material: Electro Zinc Plated Steel/Malleable Iron
• Standard Package: 10 per Carton
• Catalog Description: 1" 90 LIQUIDTIGHT CONNECTOR NON-INSULATED
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 90 Deg Type; Electro Zinc Plated Steel/Malleable Iron Material; Metallic/Non-Metallic Conduit Used on; UL, CSA Approval; 10 Per Carton Standard Package; 1 Inch NPT Trade Size; Non-Insulated Throat Type; LIQUIDTIGHT[R] Brand; Connector Size 1-5/8 Inch Dia X 2-3/16 Inch L; Application Hazardous Location; K Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 783936991351
• SKU Name: klrk k1009

Resources

• Manufacturer Spec Sheet
