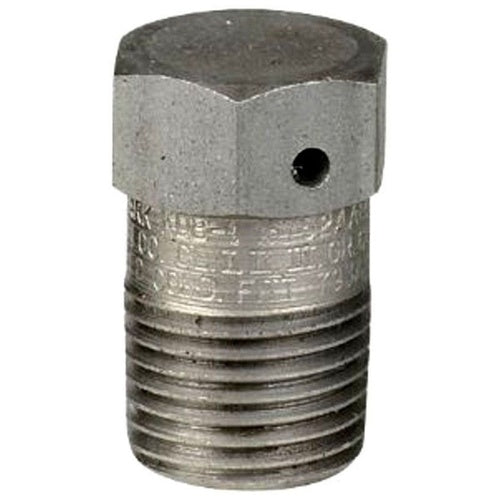

Killark KDB-1 Explosion-Proof Drain & Breather

Overview

Killark KDB-1 Explosion-Proof Drain & Breather

Product Specifications

• UPC: 78393636700
• Catalog Number: KDB-1
• Model: KDB
• Type: Drain/Breather
• Thread Size: 1/2 Inch NPT
• Material: Stainless Steel
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3
• Approval: UL, CSA
• Additional Information: Used On KB/KD Series Drain and Breathers
• Catalog Description: KDB/KB SERIES - STAINLESS STEEL DRAIN/BREATHER - THREAD SIZE NPT
• Category: Enclosure Drain & Pressure Breathers
• Full Technical Description: Drain/Breather Type; Stainless Steel Material; UL, CSA Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3 Enclosure; 1/2 Inch NPT Thread Size; Used on Kb/Kd Series Drain and Breathers; KDB Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Drain/Breather
• Unspsc: 39121321
• UPC 12 Digit: 783936367002
• SKU Name: klrk kdb1

Resources

• Manufacturer Spec Sheet
