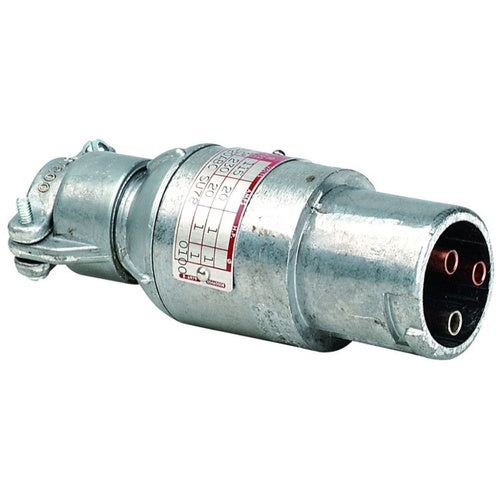

Killark KP-20ABC Cl1 20A 2W3P Plug

Overview

Killark KP-20ABC Cl1 20A 2W3P Plug

Product Specifications

• UPC: 78393637001
• Minimum Cable Outer Diameter: 0.25 Inch
• Maximum Cable Outer Diameter: 0.625 Inch
• Material: Copper Free Aluminum
• Mating Receptacle: KR
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 IIA IIB, NEMA 7C/7D
• Approval: UL, CSA
• Catalog Number: KP-20ABC
• Model: KP
• Voltage Rating: 115/230 VAC
• Current Rating: 20 Ampere
• Power Rating: 1 HP at 115/230 VAC
• Number Of Phases: 1
• Number Of Poles: 3
• Number Of Wires: 2
• Catalog Description: KP SERIES - ALUMINUM 20 AMP PLUG - INCLUDES 3 GROMMETS (RANGE 0.250-0.625) - 2W 3P CIRCUIT - 115/230VAC AT 60HZ
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Copper Free Aluminum Material; 0.25 Inch min. Cable Outer Diameter; 0.625 Inch Max. Cable Outer Diameter; 2 Wire(S); 1 Phase(S); UL, CSA Approval; 115/230 VAC Voltage Rating; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Iia Iib, NEMA 7C/7D Enclosure; 20 Ampere Current Rating; 1 HP at 115/230 VAC Power Rating; 3 Pole(S); Kr Mating Receptacle; KP Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 783936370019
• SKU Name: klrk kp20abc

Resources

• Manufacturer Spec Sheet
