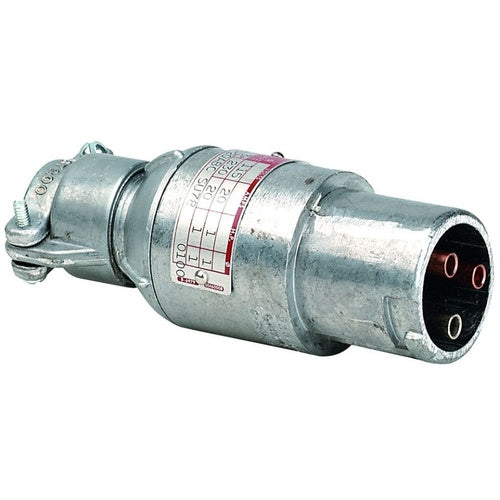

Killark KP-303D45 Cl1 30A 2W3P Plug .625-.875

Overview

Killark KP-303D45 Cl1 30A 2W3P Plug .625-.875

Product Specifications

• UPC: 78393637003
• Minimum Cable Outer Diameter: 0.625 Inch
• Maximum Cable Outer Diameter: 0.875 Inch
• Material: Copper Free Aluminum
• Mating Receptacle: KRS/KRJ
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 IIA IIB, NEMA 7C/7D
• Approval: UL
• Catalog Number: KP-303D45
• Model: KP
• Voltage Rating: 115/230/480 VAC
• Current Rating: 30 Ampere
• Power Rating: 1-1/2 HP at 115/230 VAC
• Number Of Phases: 1
• Number Of Poles: 3
• Number Of Wires: 2
• Catalog Description: KP SERIES - ALUMINUM 30 AMP PLUG - D TYPE - 2W 3P CIRCUIT - GROMMET RANGE 0.625-0.875 INCH - 115/230VAC AT 60HZ
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Copper Free Aluminum Material; 0.625 Inch min. Cable Outer Diameter; 0.875 Inch Max. Cable Outer Diameter; 2 Wire(S); 1 Phase(S); UL Approval; 115/230/480 VAC Voltage Rating; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Iia Iib, NEMA 7C/7D Enclosure; 30 Ampere Current Rating; 1-1/2 HP at 115/230 VAC Power Rating; 3 Pole(S); Krs/Krj Mating Receptacle; KP Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 783936370033
• SKU Name: klrk kp303d45

Resources

• Manufacturer Spec Sheet
