Product information
Overview

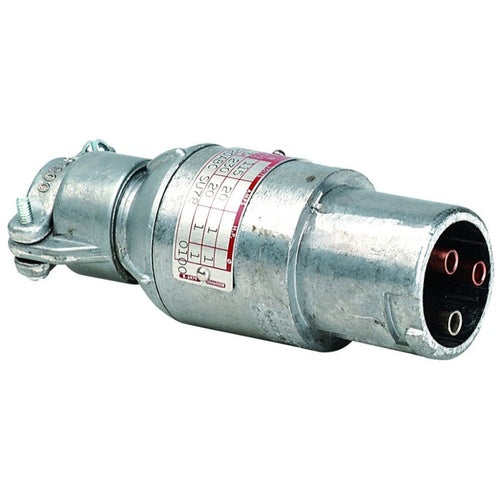

Killark KP-304D45 30A 3W-4P Plug
Product Specifications
- UPC: 78393637007
- Material: Aluminum
- Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group IIA IIB, NEMA 7CD
- Approval: UL
- Catalog Number: KP-304D45
- Voltage Rating: 115/230 VAC
- Current Rating: 30 Ampere
- Number Of Phases: 3
- Number Of Poles: 4
- Number Of Wires: 3
- Minimum Cable Outer Diameter: 0.625 Inch
- Maximum Cable Outer Diameter: 0.875 Inch
- Catalog Description: KP SERIES - ALUMINUM 30 AMP PLUG - D TYPE - 3W 4P CIRCUIT - GROMMET RANGE 0.625-0.875 INCH - 115/230VAC AT 60HZ
- Category: Plugs,Conn,Inlets,Outlets,Lampholdr
- Full Technical Description: Aluminum Material; 0.625 Inch min. Cable Outer Diameter; 0.875 Inch Max. Cable Outer Diameter; 3 Wire(S); 3 Phase(S); UL Approval; 115/230 VAC Voltage Rating; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group Iia Iib, NEMA 7CD Enclosure; 30 Ampere Current Rating; 4 Pole(S)
- Made In Usa: Yes
- Manufacturer: Killark Electric Manufacturing Co.
- Manufacturer Brand: Killark Electric Manufacturing Co.
- Sub Category: Explosionproof Pin and Sleeve Plug
- Unspsc: 39121402
- UPC 12 Digit: 783936370071
- SKU Name: klrk kp304d45
