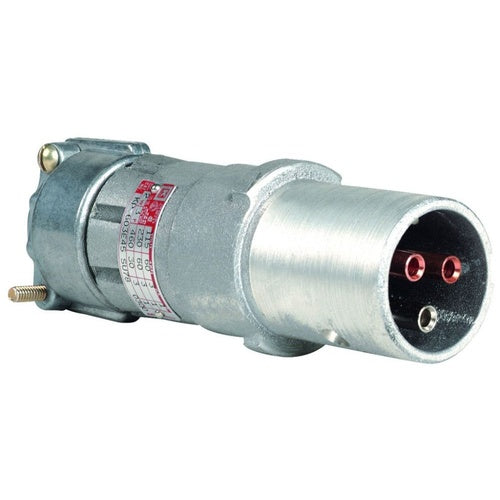

Killark KP-604E45 Cl1 60A 3W4P Plug .875-1.125

Overview

Killark KP-604E45 Cl1 60A 3W4P Plug .875-1.125

Product Specifications

• UPC: 78393637014
• Minimum Cable Outer Diameter: 0.875 Inch
• Maximum Cable Outer Diameter: 1.125 Inch
• Material: Copper Free Aluminum
• Mating Receptacle: KR
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 IIA IIB, NEMA 7C/7D
• Approval: UL
• Catalog Number: KP-604E45
• Model: KP
• Voltage Rating: 115/230/480 VAC
• Current Rating: 60 Ampere
• Power Rating: 5 HP at 115/230 VAC
• Number Of Phases: 3
• Number Of Poles: 4
• Number Of Wires: 3
• Catalog Description: KP SERIES - ALUMINUM 60 AMP PLUG - E TYPE - 3W 4P CIRCUIT - GROMMET RANGE 0.875-1.125 INCH - 115/230VAC 60HZ
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Copper Free Aluminum Material; 0.875 Inch min. Cable Outer Diameter; 1.125 Inch Max. Cable Outer Diameter; 3 Wire(S); 3 Phase(S); UL Approval; 115/230/480 VAC Voltage Rating; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Iia Iib, NEMA 7C/7D Enclosure; 60 Ampere Current Rating; 5 HP at 115/230 VAC Power Rating; 4 Pole(S); Kr Mating Receptacle; KP Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 783936370149
• SKU Name: klrk kp604e45

Resources

• Manufacturer Spec Sheet
