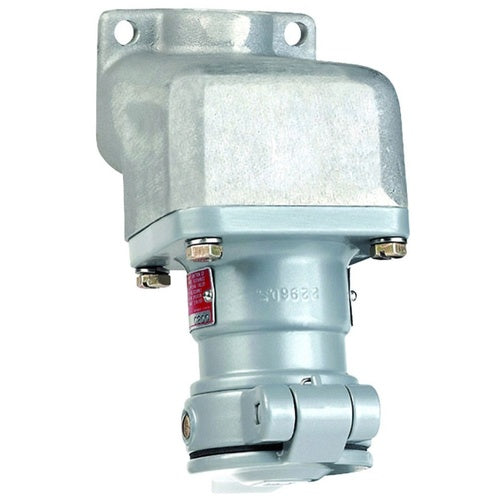

Killark KRAJC-2303 Cl1 30A 2W3P Receptacle/3/4"W/Ajc Box

Overview

Killark KRAJC-2303 Cl1 30A 2W3P Receptacle/3/4"W/Ajc Box

Product Specifications

• UPC: 78393639066
• Mating Plug: KP
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 IIA IIB, NEMA 7C/7D
• Approval: UL, CSA
• Additional Information: Includes Back Box; Material Copper Free Aluminum
• Catalog Number: KRAJC-2303
• Model: KR
• Voltage Rating: 115/230/460 VAC
• Current Rating: 7 Ampere at 460 VAC, 30 Ampere at 115/230 VAC
• Power Rating: 1/2 HP at 460 VAC, 1-1/2 HP at 115/230 VAC
• Number Of Poles: 3
• Number Of Wires: 2
• Hub Size: 3/4 Inch
• Catalog Description: KRAJC SERIES - ALUMINUM 30 AMP RECEPTACLE WITH ENCLOSURE - 2W 3P CIRCUIT- 115/230VAC AT 60HZ - HUB SIZE 3/4 INCH
• Category: Receptacles & Surge Protectors
• Full Technical Description: 3/4 Inch Hub Size; 2 Wire(S); UL, CSA Approval; 115/230/460 VAC Voltage Rating; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Iia Iib, NEMA 7C/7D Enclosure; 7 Ampere at 460 VAC, 30 Ampere at 115/230 VAC Current Rating; 1/2 HP at 460 VAC, 1-1/2 HP at 115/230 VAC Power Rating; 3 Pole(S); Kp Mating Plug; Includes Back Box; Material Copper Free Aluminum; KR Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
• Unspsc: 39121406
• UPC 12 Digit: 783936390666
• SKU Name: klrk krajc2303

Resources

• Manufacturer Spec Sheet
