Overview

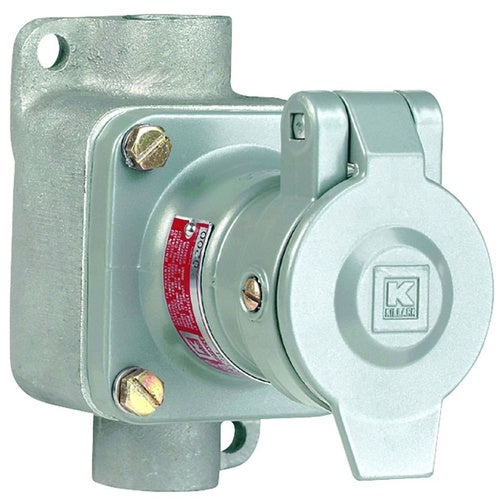

Killark KRJC-220 Cl1 20A2W3P Receptacle/3/4"W/Jlc Box

Product Specifications

• UPC: 78393639094
• Hub Size: 3/4 INCH
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS I ZONE 1 AND 2 II B II A, NEMA 7C/7D
• Approval: UL, CSA
• Catalog Number: KRJC-220
• Brand Name: KILLARK.
• Model: KRJ
• Voltage Rating: 115/230 VAC
• Current Rating: 20 AMPERE
• Power Rating: 1 HP
• Number Of Poles: 3
• Number Of Wires: 2
• Catalog Description: KRJC SERIES - ALUMINUM 20 AMP RECEPTACLE WITH ENCLOSURE - 2W 3P CIRCUIT- 115/230VAC AT 60HZ - HUB SIZE 3/4 INCH
• Category: Receptacles & Surge Protectors
• Full Technical Description: 3/4 Inch Hub Size; 2 Wire(S); UL, CSA Approval; 115/230 VAC Voltage Rating; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 II B II A, NEMA 7C/7D Enclosure; 20 Ampere Current Rating; 1 HP Power Rating; 3 Pole(S); Killark. Brand; KRJ Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Pin And Sleeve Receptacle Assembly
• Unspsc: 39121406
• UPC 12 Digit: 783936390949
• SKU Name: klrk krjc220

Resources

• Manufacturer Spec Sheet
