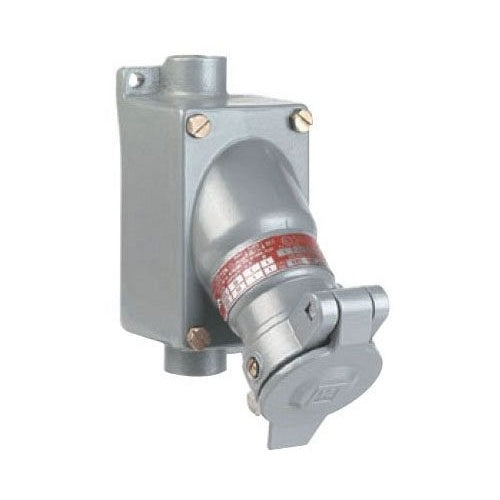

Killark KRS-215-220 Cl1 20A 2W3P Receptacle/3/4" Dead End

Overview

Killark KRS-215-220 Cl1 20A 2W3P Receptacle/3/4" Dead End

Product Specifications

• UPC: 78393639170
• Hub Size: 3/4 Inch
• Mating Plug: KP
• Enclosure: Class I Group D
• Approval: UL, CSA
• Additional Information: Includes Back Box; Material Copper Free Aluminum
• Catalog Number: KRS-215-220
• Model: KR
• Type: Dead End
• Voltage Rating: 115/230 VAC
• Current Rating: 20 Ampere
• Power Rating: 1 HP
• Number Of Poles: 3
• Number Of Wires: 2
• Catalog Description: KR SERIES - ALUMINUM 20 AMP RECEPTACLE WITH DEAD-END ENCLOSURE - 2W 3P CIRCUIT - 115/230VAC AT 60HZ - HUB SIZE 3/4 INCH
• Category: Receptacles & Surge Protectors
• Full Technical Description: Dead End Type; 3/4 Inch Hub Size; 2 Wire(S); UL, CSA Approval; 115/230 VAC Voltage Rating; Class I Group D Enclosure; 20 Ampere Current Rating; 1 HP Power Rating; 3 Pole(S); Kp Mating Plug; Includes Back Box; Material Copper Free Aluminum; KR Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
• Unspsc: 39121406
• UPC 12 Digit: 783936391700
• SKU Name: klrk krs215220

Resources

• Manufacturer Spec Sheet
