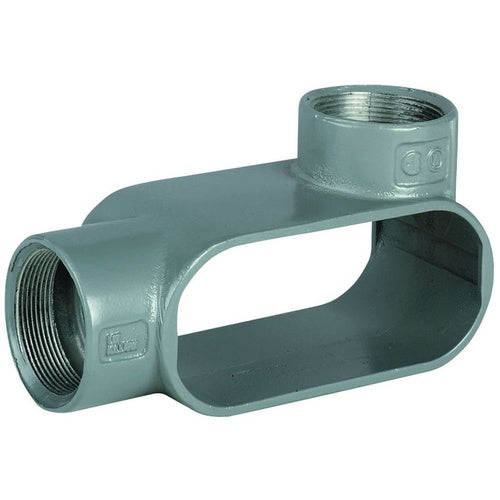

Killark L17 Duraloy7 1/2" L-Type Conduit Body Fe

Overview

Killark L17 Duraloy7 1/2" L-Type Conduit Body Fe

Product Specifications

• UPC: 78393601150
• Hub Size: 1/2 INCH
• Size: 4 11/16 INCH L X 1 7/16 INCH W X 2 5/16 INCH H
• Installation: THREADED (IMC/RIGID)
• Material: ELECTROSTATICALLY APPLIED POWDER COATED OVER ELECTRO ZINC AND CHROMATE SEALANT CLASS 30 GRAY IRON ALLOY
• Form Type: FORM 7
• Approval: UL, CSA
• Used On: RIGID/IMC CONDUIT
• Catalog Number: L17
• Brand Name: HUBBELL[R]
• Model: 7
• Access Opening: SIDE
• Configuration: L
• Cover Type: SCREW ON
• Hub Location: 90 DEG
• Number Of Hubs: 2
• Catalog Description: 1/2" L HUB, IRON DURALOY 7 CONDUIT BODY
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Class 30 Gray Iron Alloy Material; 4 11/16 Inch L X 1 7/16 Inch W X 2 5/16 Inch H Size; Rigid/Imc Conduit Used on; 1/2 Inch Hub Size; Threaded (Imc/Rigid) Installation; L Configuration; 2 Hub(S); UL, CSA Approval; Screw on Cover Type; 90 Deg Hub Location; Form 7 Form Type; Side Access Opening; HUBBELL[R] Brand; 7 Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936011509
• SKU Name: klrk l17
