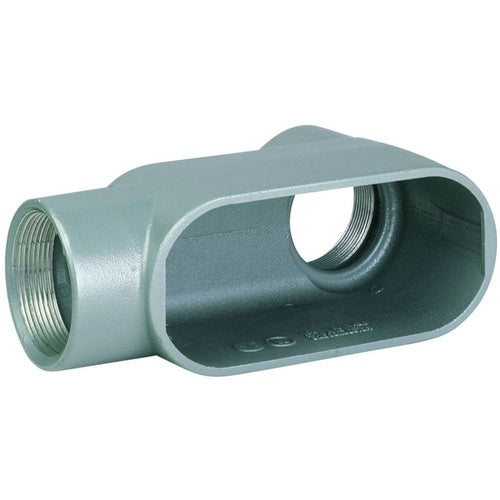

Killark LB107 Duraloy7 4" LB-Type Conduit Body Fe

Overview

Killark LB107 Duraloy7 4" LB-Type Conduit Body Fe

Product Specifications

• UPC: 78393601109
• Hub Size: 4 Inch
• Size: 13 Inch L x 7-1/4 Inch W x 5-3/8 Inch H
• Installation: Threaded (IMC/Rigid)
• Material: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Class 30 Gray Iron Alloy
• Form Type: Form 7
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
• Catalog Number: LB107
• Brand Name: DURALOY[R]
• Model: 7
• Access Opening: Back
• Configuration: LB
• Cover Type: Stainless Steel
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Catalog Description: 4" LB HUB, IRON DURALOY 7 CONDUIT BODY,
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Class 30 Gray Iron Alloy Material; 13 Inch L X 7-1/4 Inch W X 5-3/8 Inch H Size; Rigid Conduit/Imc Used on; 4 Inch Hub Size; Threaded (Imc/Rigid) Installation; lb Configuration; 2 Hub(S); UL, CSA Approval; Stainless Steel Cover Type; 90 Deg Hub Location; Form 7 Form Type; Back Access Opening; DURALOY[R]7 Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; 7 Model
• Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936011097
• SKU Name: klrk lb107
