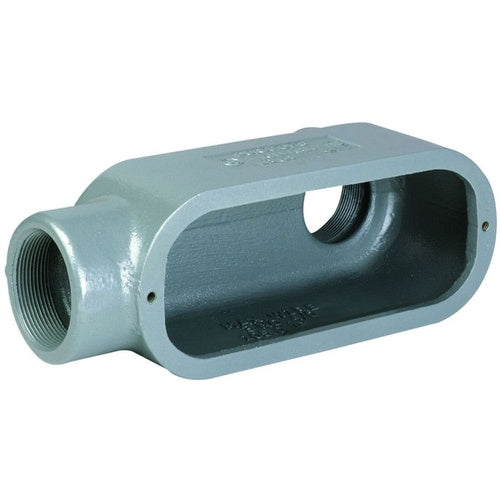

Killark LB18 Conduit Body,LB-Type,Gray Iron 1/2"

Overview

Killark LB18 Conduit Body,LB-Type,Gray Iron 1/2"

Product Specifications

• UPC: 78393648105
• Hub Size: 1/2 Inch
• Size: 5-3/32 Inch L x 2-9/32 Inch W x 1-15/32 Inch H
• Installation: Threaded (IMC/Rigid)
• Material: Electro Zinc Chromate Sealant Electrostatic Powder Coated Gray Iron Alloy Body, Stainless Steel Screw
• Form Type: Form 8
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
• Catalog Number: LB18
• Brand Name: DURALOY[R]
• Model: 8
• Access Opening: Back
• Configuration: LB
• Cover Type: Stamped and Cast Stainless Steel Screw-On
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Catalog Description: DURALOY 8 SERIES - IRON CONDUIT BODY - LB TYPE - HUB SIZE 1/2 INCH - VOLUME 5.0 CUBIC INCHES
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Duraloy Gray Iron Alloy Material; 6 Inch Length X 2 Inch Width X 3 Inch Height Size; Rigid Conduit and IMC Used on; 1/2 Inch Hub Size; Screw Installation; lb Configuration; 2 Hub(S); UL, CSA Approval; Gasketed Cover Type; 90 Degree Hub Location; 8 Form Type; 90 Degree Access Opening; DURALOY[R] 8 Brand; Application Wet Location, Hazardous Location; Applicable Standard Federal Specification W-C-586D/A-A 50563; LB Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936481050
• SKU Name: klrk lb18
