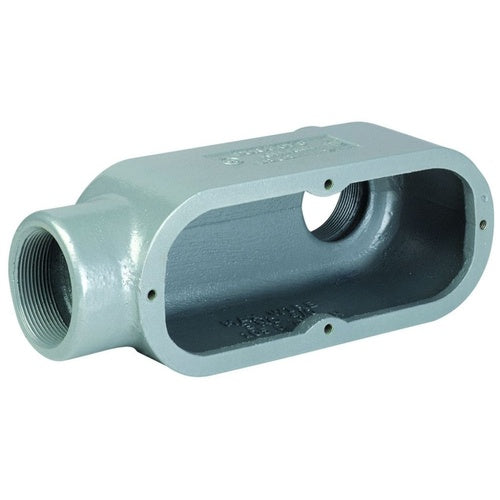

Killark LB68 Conduit Body,LB-Type Gray Iron 2"

Overview

Killark LB68 Conduit Body,LB-Type Gray Iron 2"

Product Specifications

• UPC: 78393648110
• Hub Size: 2 Inch
• Size: 11-1/8 Inch L x 4-13/16 Inch W x 4-13/16 Inch H
• Installation: Threaded (IMC/Rigid)
• Material: Electro Zinc Chromate Sealant Electrostatic Powder Coated Gray Iron Alloy Body, Stainless Steel Screw
• Form Type: Form 8
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
• Catalog Number: LB68
• Brand Name: DURALOY[R]
• Model: 8
• Access Opening: Back
• Configuration: LB
• Cover Type: Stamped and Cast Stainless Steel Screw-On
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Catalog Description: 2" LB HUB, IRON DURALOY 8 CONDUIT BODY
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electro Zinc Chromate Sealant Electrostatic Powder Coated Gray Iron Alloy Body, Stainless Steel Screw Material; 11-1/8 Inch L X 4-13/16 Inch W X 4-13/16 Inch H Size; Rigid Conduit/Imc Used on; 2 Inch Hub Size; Threaded (Imc/Rigid) Installation; lb Configuration; 2 Hub(S); UL, CSA Approval; Stamped and Cast Stainless Steel Screw-on Cover Type; 90 Deg Hub Location; Form 8 Form Type; Back Access Opening; DURALOY[R]8 Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; 8 Model
• Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936481104
• SKU Name: klrk lb68

Resources

• Manufacturer Spec Sheet
• Technical Drawing
