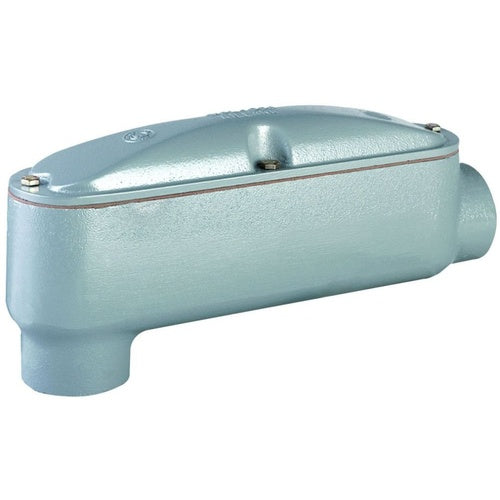

Killark MOLB-9 3-1/2" Aluminum Mogul Conduit Body

Overview

Killark MOLB-9 3-1/2" Aluminum Mogul Conduit Body

Product Specifications

• UPC: 78393641014
• Size: 28-11/16 Inch L x 5-1/2 Inch W x 7-7/8 Inch H
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Approval: UL, CSA
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
• Catalog Number: MOLB-9
• Model: MOL
• Access Opening: Back
• Configuration: LB
• Cover Type: Raised Dome
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Hub Size: 3-1/2 Inch
• Catalog Description: 3-1/2" LB HUB,ALUMINUM MOGUL CONDUIT BODY
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; 28-11/16 Inch L X 5-1/2 Inch W X 7-7/8 Inch H Size; 3-1/2 Inch Hub Size; lb Configuration; 2 Hub(S); UL, CSA Approval; Raised Dome Cover Type; 90 Deg Hub Location; Back Access Opening; Applicable Standard Federal Specification W-C-586D/A-A 50563; MOL Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936410142
• SKU Name: klrk molb9
