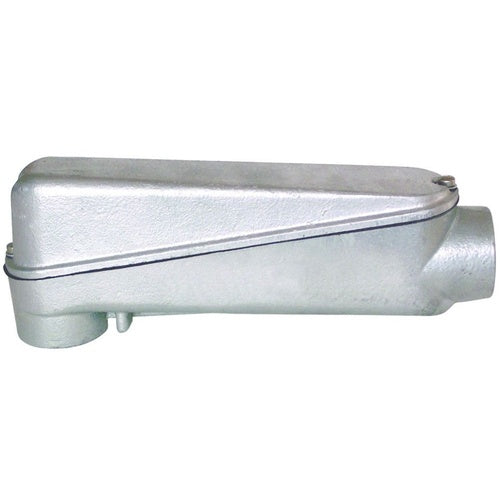

Killark MOLBD-8M 3" Iron Mogul Conduit Body

Overview

Killark MOLBD-8M 3" Iron Mogul Conduit Body

Product Specifications

• UPC: 78393655536
• Size: 22 Inch L x 4-1/2 Inch W x 7-1/2 Inch H
• Installation: Screw
• Material: Hot Dipped Galvanized Cast Iron
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
• Catalog Number: MOLBD-8M
• Model: MOLBD
• Access Opening: Back
• Configuration: LB
• Cover Type: Raised Dome
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Hub Size: 3 Inch
• Catalog Description: 3" LB HUB, IRON MOGUL CONDUIT BODY
• Category: Miscellaneous Conduit Bodies
• Full Technical Description: Hot Dipped Galvanized Cast Iron Material; 22 Inch L X 4-1/2 Inch W X 7-1/2 Inch H Size; Rigid Conduit/Imc Used on; 3 Inch Hub Size; Screw Installation; lb Configuration; 2 Hub(S); UL, CSA Approval; Raised Dome Cover Type; 90 Deg Hub Location; Back Access Opening; Applicable Standard Federal Specification W-C-586D/A-A 50563; MOLBD Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936555362
• SKU Name: klrk molbd8m
