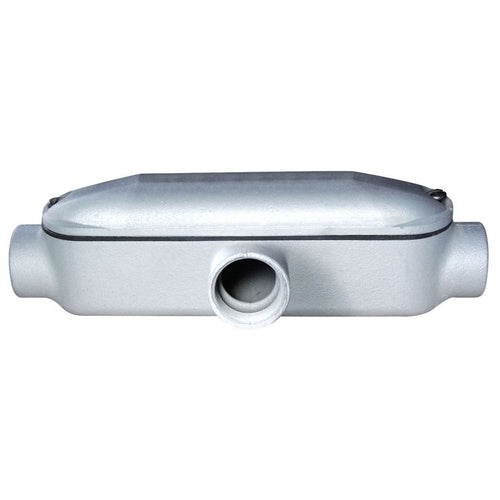

Killark MOT-8 3" Aluminum Mogul Conduit Body

Overview

Killark MOT-8 3" Aluminum Mogul Conduit Body

Product Specifications

• UPC: 78393655574
• Size: 27-1/4 Inch L x 4-11/16 Inch W x 5-15/16 Inch H
• Installation: Screw
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
• Catalog Number: MOT-8
• Model: MOT
• Access Opening: Tee Side
• Configuration: T
• Cover Type: Raised Dome
• Hub Location: Tee
• Number Of Hubs: 3
• Hub Size: 3 Inch
• Catalog Description: 3" T HUB,ALUMINUM MOGUL CONDUIT BODY
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; 27-1/4 Inch L X 4-11/16 Inch W X 5-15/16 Inch H Size; Rigid Conduit/Imc Used on; 3 Inch Hub Size; Screw Installation; T Configuration; 3 Hub(S); UL, CSA Approval; Raised Dome Cover Type; Tee Hub Location; Tee Side Access Opening; Applicable Standard Federal Specification W-C-586D/A-A 50563; MOT Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936555744
• SKU Name: klrk mot8

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
• Technical Line Drawing
