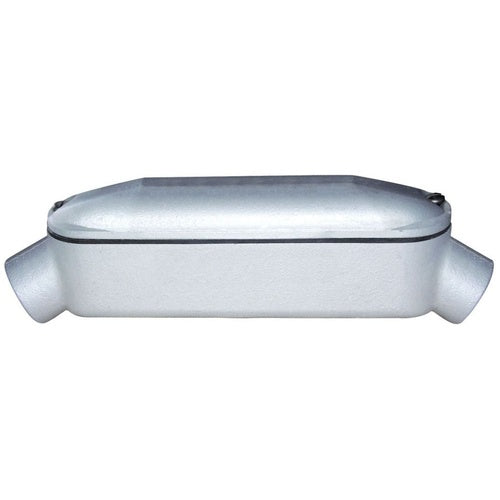

Killark MOUB-3 1" Aluminum Mogul Conduit Body

Overview

Killark MOUB-3 1" Aluminum Mogul Conduit Body

Product Specifications

• UPC: 78393655591
• Hub Size: 1 INCH
• Size: 10 7/16 INCH L X 2 5/8 INCH W X 3 7/8 INCH H
• Installation: SCREW
• Material: ELECTROSTATICALLY APPLIED POWDER COATED COPPER FREE ALUMINUM
• Approval: UL, CSA
• Used On: RIGID/IMC CONDUIT
• Catalog Number: MOUB-3
• Brand Name: HUBBELL[R]
• Model: MOUB
• Access Opening: BACK
• Configuration: UB
• Cover Type: SCREW ON
• Hub Location: 45 DEG
• Number Of Hubs: 2
• Catalog Description: 1" UB HUB, ALUMINUM MOGUL CONDUIT BODY
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; 10 7/16 Inch L X 2 5/8 Inch W X 3 7/8 Inch H Size; Rigid/Imc Conduit Used on; 1 Inch Hub Size; Screw Installation; UB Configuration; 2 Hub(S); UL, CSA Approval; Screw on Cover Type; 45 Deg Hub Location; Back Access Opening; HUBBELL[R] Brand; MOUB Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936555911
• SKU Name: klrk moub3

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
• Technical Line Drawing
