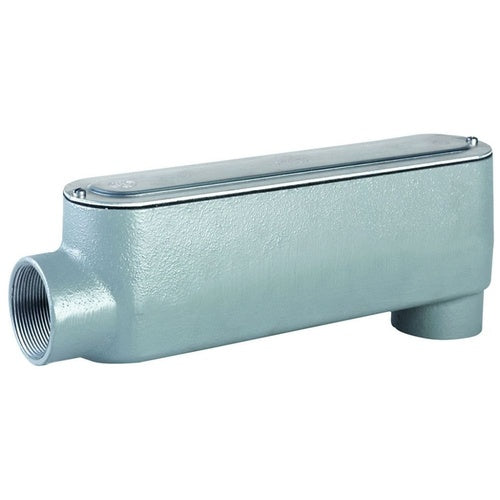

Killark NECLB-5 1-1/2" Aluminum LB-Type Conduit Body

Overview

Killark NECLB-5 1-1/2" Aluminum LB-Type Conduit Body

Product Specifications

• UPC: 78393642102
• Installation: Threaded
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Approval: UL
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563; Includes Cover, Gasket
• Catalog Number: NECLB-5
• Model: NECLB
• Access Opening: Back
• Configuration: LB
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Hub Size: 1-1/2 Inch
• Size: 11-17/32 Inch L x 2-3/4 Inch W x 5-1/16 Inch H
• Catalog Description: 1-1/2" LB HUB, ALUMINUM NEC CONDUIT BODY
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; 11-17/32 Inch L X 2-3/4 Inch W X 5-1/16 Inch H Size; 1-1/2 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL Approval; 90 Deg Hub Location; Back Access Opening; Applicable Standard Federal Specification W-C-586D/A-A 50563; Includes Cover, Gasket; NECLB Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936421025
• SKU Name: klrk neclb5

Resources

• Manufacturer Spec Sheet
• Technical Drawing
