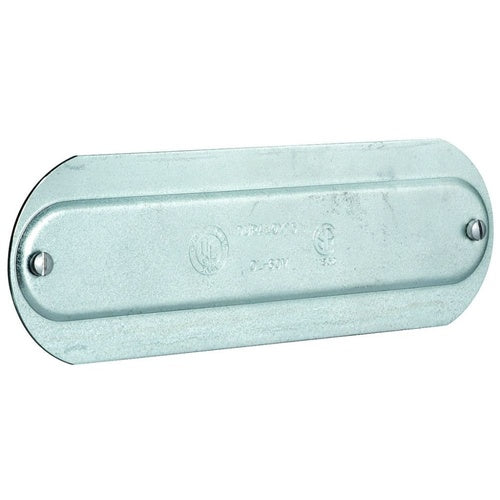

Killark OL-10 1/2" Aluminum Blank Cover

Overview

Killark OL-10 1/2" Aluminum Blank Cover

Product Specifications

• UPC: 78393649007
• Approval: UL, CSA
• Additional Information: Overall Dimension 1-3/8 Inch Width x 3/8 Inch Height; Screw Material Stainless Steel; Used On Rigid/IMC Conduit; Applicable Standard Federal Specification W-C-586D/A-A 50563
• Catalog Number: OL-10
• Brand Name: Killark
• Model: O
• Type: Screw
• Trade Size: 1/2 Inch
• Form Type: Series O
• Length: 3.937 Inch
• Material: Copper-Free Aluminum
• Catalog Description: O SERIES/DURALOY 5 SERIES - ALUMINUM CONDUIT BODY COVER - HUB SIZE 1/2INCH
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Screw Type; Copper-Free Aluminum Material; 3.937 Inch; UL, CSA Approval; 1/2 Inch Trade Size; Series O Form Type; DURALOY[R]5 Brand; Overall Dimension 1-3/8 Inch Width X 3/8 Inch Height; Screw Material Stainless Steel; Used on Rigid/Imc Conduit; Applicable Standard Federal Specification W-C-586D/A-A 50563; O Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body Cover
• Unspsc: 39131708
• UPC 12 Digit: 783936490076
• SKU Name: klrk ol10

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
• Technical Drawing
