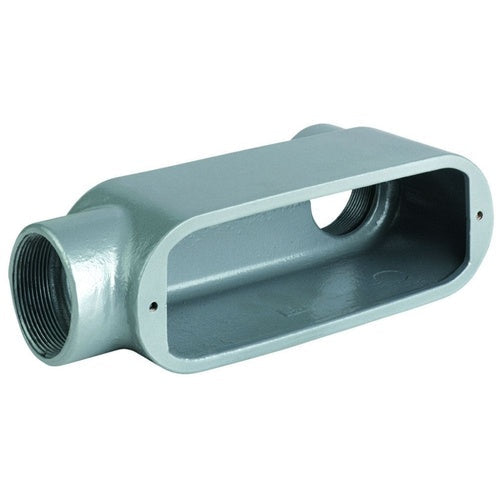

Killark OLB-7M Duraloy 2 1/2" LB-Type Conduit Body

Overview

Killark OLB-7M Duraloy 2 1/2" LB-Type Conduit Body

Product Specifications

• UPC: 78393648048
• Hub Size: 2-1/2 Inch
• Size: 13-15/16 Inch L x 4-3/8 Inch W x 6-1/8 Inch H
• Installation: Threaded (IMC/Rigid)
• Material: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Malleable Iron
• Form Type: Form 5
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
• Catalog Number: OLB-7M
• Brand Name: DURALOY[R]
• Model: O/5
• Access Opening: Back
• Configuration: LB
• Cover Type: Stamped and Cast Stainless Steel Screw-On
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Catalog Description: 2-1/2" LB HUB, IRON O SERIES CONDUIT BODY
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Malleable Iron Material; 13-15/16 Inch L X 4-3/8 Inch W X 6-1/8 Inch H Size; Rigid Conduit/Imc Used on; 2-1/2 Inch Hub Size; Threaded (Imc/Rigid) Installation; lb Configuration; 2 Hub(S); UL, CSA Approval; Stamped and Cast Stainless Steel Screw-on Cover Type; 90 Deg Hub Location; Form 5 Form Type; Back Access Opening; DURALOY[R]5 Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; O/5 Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936480480
• SKU Name: klrk olb7m

Resources

• Manufacturer Spec Sheet
