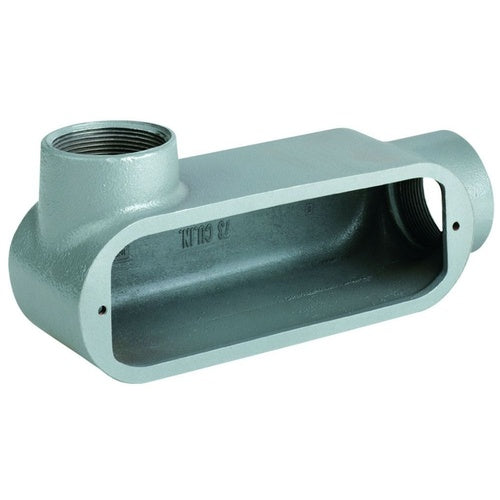

Killark OLL-3 Aluminum LL 1"

Overview

Killark OLL-3 Aluminum LL 1"

Product Specifications

• UPC: 78393649043
• Hub Size: 1 Inch
• Size: 6-1/4 Inch Length x 2-9/16 Inch Width x 2 Inch Height
• Installation: Stainless Steel Screw
• Material: Powder Epoxy Painted Copper Free Aluminum
• Approval: UL, CSA
• Used On: Rigid/IMC Conduit
• Additional Information: Color Gray
• Catalog Number: OLL-3
• Brand Name: DURALOY[R]
• Model: O
• Access Opening: Left Side
• Configuration: LL
• Cover Type: Cast
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Catalog Description: O SERIES/DURALOY 5 SERIES - ALUMINUM CONDUIT BODY - LL TYPE - HUB SIZE 1INCH - VOLUME 12.0 CUBIC INCHES
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Powder Epoxy Painted Copper Free Aluminum Material; 6-1/4 Inch Length X 2-9/16 Inch Width X 2 Inch Height Size; Rigid/Imc Conduit Used on; 1 Inch Hub Size; Stainless Steel Screw Installation; LL Configuration; 2 Hub(S); UL, CSA Approval; Cast Cover Type; 90 Deg Hub Location; Left Side Access Opening; DURALOY[R]5 Brand; Color Gray; O Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936490434
• SKU Name: klrk oll3

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
