Overview

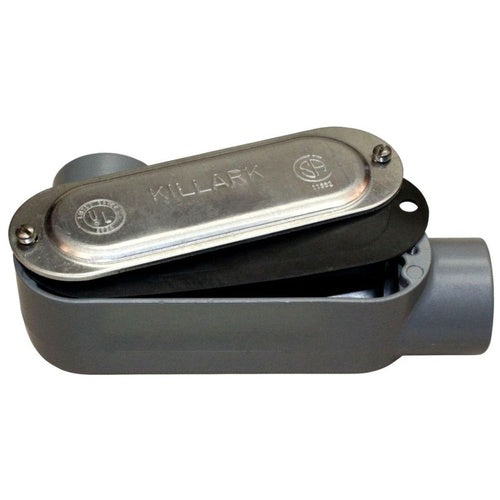

Killark OLL-6CG 2" Aluminum LL-Type Conduit Body

Product Specifications

• UPC: 78393648008
• Hub Size: 2 Inch
• Size: 10-9/16 Inch L x 4-3/16 Inch W x 3-1/2 Inch H
• Installation: Threaded (IMC/Rigid)
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Form Type: Form 5
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563; Includes Cover, Gasket
• Catalog Number: OLL-6CG
• Brand Name: DURALOY[R], K-PAK[R]
• Model: O/5
• Access Opening: Left Side
• Configuration: LL
• Cover Type: Stamped and Cast Stainless Steel Screw-On
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Catalog Description: O SERIES/DURALOY 5 SERIES - ALUMINUM CONDUIT BODY WITH COVER AND GASKET- LL TYPE - HUB SIZE 2 INCH - VOLUME 70.0 CUBIC INCHES
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; 10-9/16 Inch L X 4-3/16 Inch W X 3-1/2 Inch H Size; Rigid Conduit/Imc Used on; 2 Inch Hub Size; Threaded (Imc/Rigid) Installation; LL Configuration; 2 Hub(S); UL, CSA Approval; Stamped and Cast Stainless Steel Screw-on Cover Type; 90 Deg Hub Location; Form 5 Form Type; Left Side Access Opening; DURALOY[R]5, K-PAK[R] Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; Includes Cover, Gasket; O/5 Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936480084
• SKU Name: klrk oll6cg

Resources

• Manufacturer Spec Sheet
