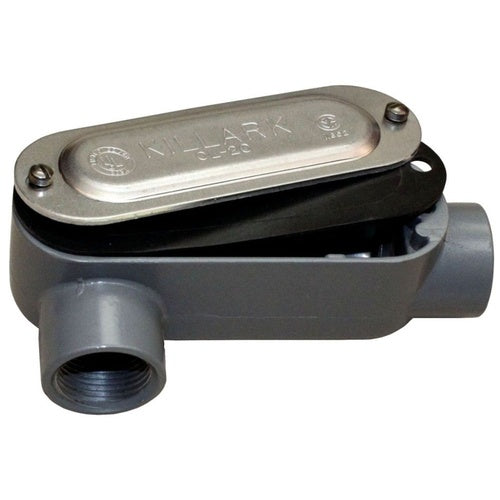

Killark OLR-5CG Conduit Body

Product Specifications

• UPC: 78393648010
• Hub Size: 1-1/2 Inch
• Size: 8-1/8 Inch L x 3-1/2 Inch W x 2-3/4 Inch H
• Installation: Threaded (IMC/Rigid)
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Form Type: Form 5
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563; Includes Cover, Gasket
• Catalog Number: OLR-5CG
• Brand Name: DURALOY[R], K-PAK[R]
• Model: O/5
• Access Opening: Right Side
• Configuration: LR
• Cover Type: Stamped and Cast Stainless Steel Screw-On
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Catalog Description: O SERIES/DURALOY 5 SERIES - ALUMINUM CONDUIT BODY WITH COVER AND GASKET- LR TYPE - HUB SIZE 1-1/2 INCH - VOLUME 31.0 CUBIC INCHES
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; 8-1/8 Inch L X 3-1/2 Inch W X 2-3/4 Inch H Size; Rigid Conduit/Imc Used on; 1-1/2 Inch Hub Size; Threaded (Imc/Rigid) Installation; LR Configuration; 2 Hub(S); UL, CSA Approval; Stamped and Cast Stainless Steel Screw-on Cover Type; 90 Deg Hub Location; Form 5 Form Type; Right Side Access Opening; DURALOY[R]5, K-PAK[R] Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; Includes Cover, Gasket; O/5 Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936480107
• SKU Name: klrk olr5cg
